Product Details:
Payment & Shipping Terms:
|

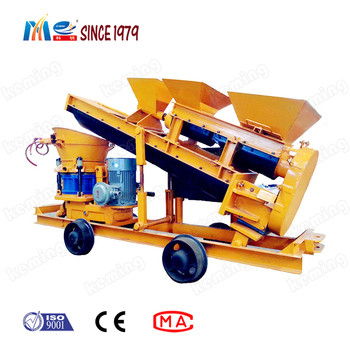

| Product: | JPS7I-L Shotcrete Machine With Feeder And Mixer | Suitable Water-cement Ratio: | 0.4-0.45 |
|---|---|---|---|
| Material Feeding Height: | 1.2m | After-sales Service: | Online Support |
| High Light: | Rational Structure Wet Mix Shotcrete Machine,1.2m Wet Mix Shotcrete Machine,Wet Mix Shotcrete Machine With Feeder |
||
1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.
2. Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..
3. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
|
Items |
Unit |
Technical parameters |
|
Model |
|
JPS7I-L Shotcrete Machine |
|
Capacity |
m3/h |
5~7 |
|
Conveying dist. |
m |
70/20 |
|
Suitable water and cement ratio |
|
cement/gravel=1:3-5 |
|
Aggregate size max. |
mm |
≤20 |
|
Conveying pipe ID. |
mm |
φ50 |
|
Operating pressure |
MPa |
0.2~0.4 |
|
Air consumption |
m3/min |
7-8 |
|
Material feeding height |
m |
1.2 |
|
Motor power |
kw |
5.5(feeder)/7.5(main motor) |
|
Voltage |
V |
380/660 or 660/1140 |
|
Machine gauge |
mm |
600(900) |
|
Dimensions (Length×width×height) |
mm |
2930×1152×1620 |
|
Total weight |
kg |
1250 |
Shotcrete Machine Set Application:
1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.
2. Keming shotcrete machine with feeder and mixer is composed of the feeding screw system, rotor assembly, air system, spraying system, electric control box, etc..
3. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
FAQ
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
