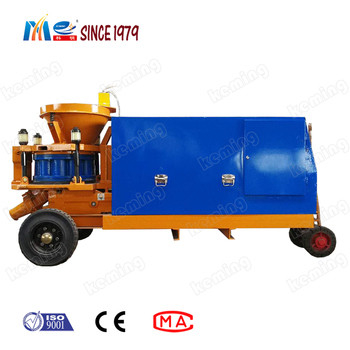

20mm Max Aggregate Size Wet Shotcrete Machine for Construction

Product Description:

The Wet Mix Shotcrete Machine is a shotcrete machine suitable for wet mix spraying. With the maximum conveying distance of 35m, the maximum water supply pressure of 0.2MPa and the maximum aggregate size and particle size of 20mm, this shotcrete machine for wet mix is ideal for various construction sites. It can be used for spraying reinforced concrete construction, rock engineering, and underground works. This wet shotcrete machine is ideal for providing the perfect combination of power, performance, and efficiency. Its advanced technology ensures fast and accurate spraying, and its high-pressure water pump ensures that the sprayed material is of high quality. The wet mix shotcrete machine is reliable and durable, making it the perfect choice for all your wet mix shotcrete needs.



Features:

• Product Name: Wet Mix Shotcrete Machine
• Max. Horizontal Conveying Distance: 100m
• Power: Electric, Diesel Or Air Motor
• Max. Water Supply Pressure: 0.2MPa
• Max. Aggregate Particle Size: 20mm
• Max. Aggregate Size: 20mm



Technical Parameters:

Parameter	Value
Product Name	Wet Mix Shotcrete Machine
Max. Pressure	2.5 MPa
Max. Air Supply Volume	10 m3/min
Max. Horizontal Conveying Distance	100 m
Max. Vertical Conveying Distance	35 m
Max. Water Supply Pressure	0.2 MPa
Power	Electric, Diesel Or Air Motor
Max. Hose Diameter	51/57 mm
Max. Aggregate Size	20 mm
Max. Aggregate Particle Size	20 mm



Applications:

The KEMING KSP wet mix shotcrete machine is a powerful and reliable concrete spraying machine that is manufactured in China. It has a maximum aggregate size of 20mm, a maximum hose length of 14m/piece, a maximum hose diameter of 51/57mm, and a maximum conveying distance of 35m. This concrete spraying machine is perfect for any application and is able to quickly and efficiently spray wet mix concrete to create strong and durable structures. It is an ideal choice for concrete pumping, shotcrete, and wet mix spraying applications. The KEMING KSP wet mix shotcrete machine is a reliable and efficient piece of equipment for any construction project.



Packing and Shipping:

The Wet Mix Shotcrete Machine is packaged in a wooden box and adequately protected for overseas shipping. The product will be shipped by air or by sea, depending on the customer's preference.

The package includes a detailed instruction manual, as well as all necessary components for full assembly. Additionally, spare parts and tools are included for any necessary repairs.



FAQ:

A:The brand name of the Wet Mix Shotcrete Machine is KEMING.
Q:What is the model number of the Wet Mix Shotcrete Machine?
A:The model number of the Wet Mix Shotcrete Machine is KSP.
Q:Where is the Wet Mix Shotcrete Machine made?
A:The Wet Mix Shotcrete Machine is made in China.
Q:How does the Wet Mix Shotcrete Machine work?
A:The Wet Mix Shotcrete Machine works by spraying concrete or mortar using compressed air.
Q:What materials can be used in the Wet Mix Shotcrete Machine?
A:The Wet Mix Shotcrete Machine can be used with a variety of materials such as cement, sand, gravel, and other aggregates.
