Product Details:
Payment & Shipping Terms:
|

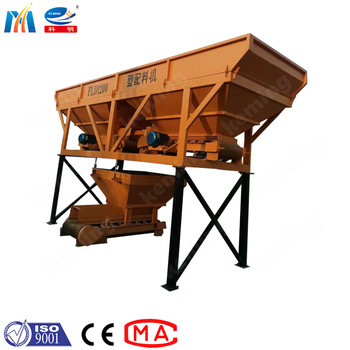

| Product: | KEMING Concrete Batching Machine | Weight Dipper Volume(L): | 800-1200L |
|---|---|---|---|
| Storage Dipper Volume(L): | 2*2000 | After-sales Service: | Supports In Technical |
| High Light: | Grout Concrete Batching Machine,KEMING Concrete Batching Machine,1200L Concrete Batching Machine |
||
1. Batching machine, also known as concrete batching machine
2. It is generally suitable for general construction sites, roads, bridges and other projects.
KEMING Concrete Batching Machine Application:
1. PL series concrete batching equipment is the front-end automatic batching equipment for motor vehicle concrete mixing equipment.
| Model | PLD800 | PLD1200 | PLD1600 | |||
| Weight Dipper Volume(L) | 800 | 800 | 1200 | 1200 | 1600 | 1600 |
| Storage Dipper Volume(L) | 2*2000 | 3*2000 | 3*3500 | 4*4500 | 3*4500 | 4*4500 |
| Capacity(m³/h) | 40 | 40 | 60 | 40 | 80 | 80 |
| Batching Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Aggregate Kinds | 2 | 3 | 3 | 4 | 4 | 4 |
| Feeding Height(mm) | 2350 | 2350 | 2700 | 2700 | 2850 | 2850 |
| Weighing Way | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale |
| Overall Dimension(L*W*H)(mm) | 5360X1700X2620 | 7680X1700X2650 | 9230X2100X3100 | 12100X2100X3100 | 9230X2100X3450 | 12100X2100X3450 |
| Recommended Matching Mixer Model | JS500 JDC350 | JS500 JDC350 | JS500 JS750 | JS500 JS750 | JS750 JS1000 | JS750 JS1000 |
| Note: Any change of technical data shall not be advised additionally. | ||||||
