Product Details:
Payment & Shipping Terms:
|
| Product: | PLD Concrete Batching Machine | Application: | Store Measure Aggregates |
|---|---|---|---|
| Power Type: | Electric Motor /diesel Engine | After-sales Service: | Supports For Technical |
| High Light: | PLD Concrete Batching Machine,Sand Stone Cement Grout Mixer Machine,diesel engine Grout Mixer Machine |
||
1. Batching machine, also known as concrete batching machine
2. It is used to store and measure various sand and gravel aggregates in concrete, pulverized coal ash, mineral powder, water, etc. are mixed to form concrete.

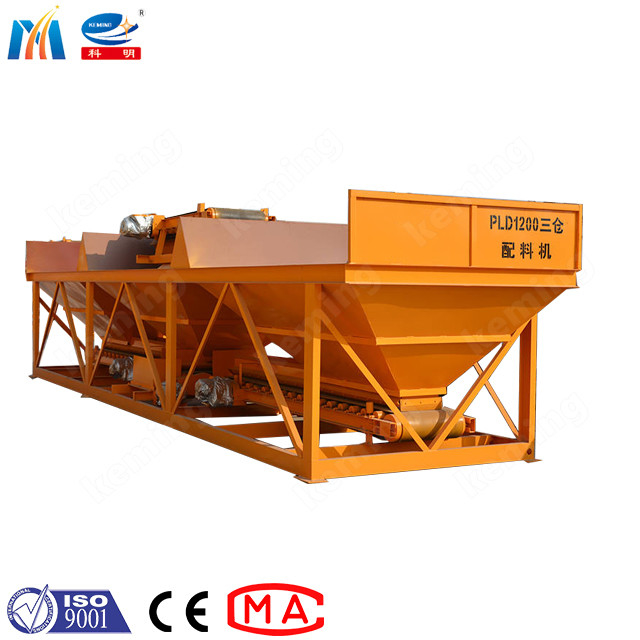

PLD Concrete Batching Machine Application:
1. PL series concrete batching equipment is the front-end automatic batching equipment for motor vehicle concrete mixing equipment.
| Model | PLD800 | PLD1200 | PLD1600 | |||
| Weight Dipper Volume(L) | 800 | 800 | 1200 | 1200 | 1600 | 1600 |
| Storage Dipper Volume(L) | 2*2000 | 3*2000 | 3*3500 | 4*4500 | 3*4500 | 4*4500 |
| Capacity(m³/h) | 40 | 40 | 60 | 40 | 80 | 80 |
| Batching Accuracy(%) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
| Aggregate Kinds | 2 | 3 | 3 | 4 | 4 | 4 |
| Feeding Height(mm) | 2350 | 2350 | 2700 | 2700 | 2850 | 2850 |
| Weighing Way | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale | Electronic Scale |
| Overall Dimension(L*W*H)(mm) | 5360X1700X2620 | 7680X1700X2650 | 9230X2100X3100 | 12100X2100X3100 | 9230X2100X3450 | 12100X2100X3450 |
| Recommended Matching Mixer Model | JS500 JDC350 | JS500 JDC350 | JS500 JS750 | JS500 JS750 | JS750 JS1000 | JS750 JS1000 |
| Note: Any change of technical data shall not be advised additionally. | ||||||
