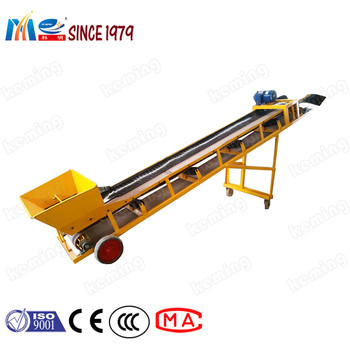

Product: | SDL Type Belt Feeder Machine | Screw Rev. Speed: | 48 R/min |
---|---|---|---|
Max. Delivery Distance: | 2.5 M | After-sales Service: | Technical Supports Through Video |
High Light: | SDL Type Belt Feeder Machine,Belt Feeder Machine For Material Conveying,2.5m Belt Feeder Machine |
1. Compact structure, rational design, high performance.
2. High working efficiency, low labour intensity, less wearable parts.
SDL Type Belt Feeder Machine Application:
1. Conveying cement, mortar, concrete etc. The feeder can be equipped with shotcrete machine in tunnel, culvert, highway slope, underground works etc.
2. Conveying solid materials in industrial production.
Model | Screw diameter (Screw feeder) mm | Belt width (Belt feeder) mm | Rated input power kw | Length m |
SDL160 | 150-180(length can be customized) | 3(4/5.5) | 2/3 | |
SDL220 | 200-230(length can be customized) | 5.5(4/7.5) | 2/3/4 | |
SDL300 | 300-330(length can be customized) | 300(length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
SDL400 | 400-430(length can be customized) | 400(length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
SDL600 | 600-630(length can be customized) | 600(length can be customized) | 5.5(7.5/11) | 3/4/5/6 |
SDL800 | 800-830(length can be customized) | 7.5(11) | 4/5/6/9 | |
SDL1000 | 1000-1030 | 11(15) | 5/6/9 |
