Product Details:
Payment & Shipping Terms:
|
| Model: | KH 25 | Warranty: | 12month |
|---|---|---|---|
| Color: | Customized | Capacity: | 0.3-80 M3/h |
| Max Aggregate Size: | 2-10mm | Power Engine: | Electric Driven |
| Name: | Hose Pump | Certificate: | CE, ISO, MA |
| High Light: | KH Cement Foaming Industrial Hose Pump,10mm Industrial Hose Pump,80 m3/h Industrial Hose Pump |
||

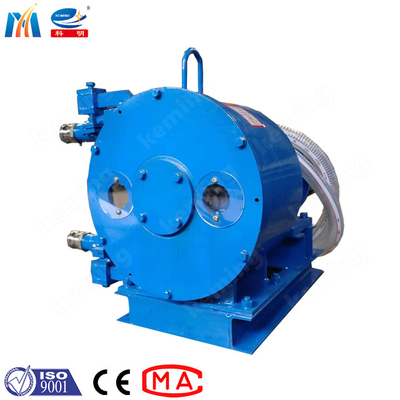

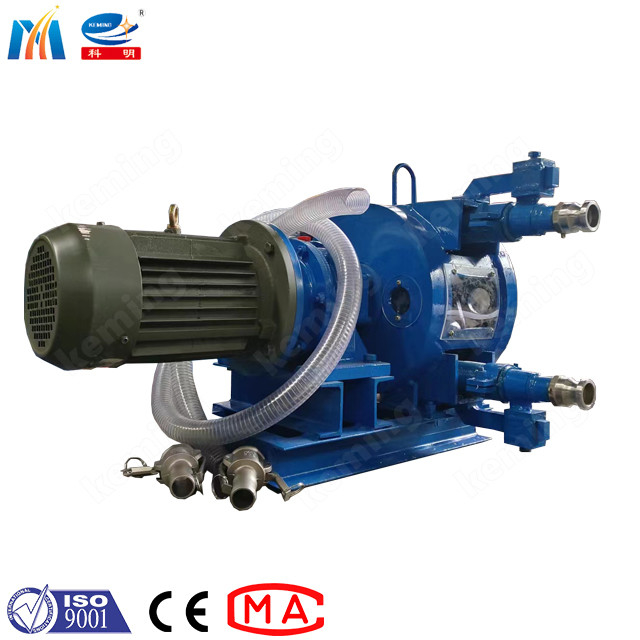

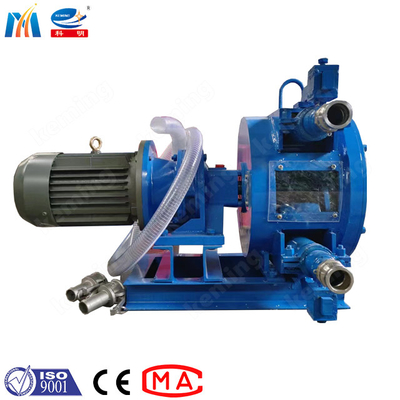

KH Cement Foaming Industrial Hose Pump Hose Grout Liquids Conveying Machine
Application:
The hose pump can be used for various mining or chemical or other areas.
1. Construction — pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete …
2. Mining industry — delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials…
3. Water treatment — delivery of water, sewage, thick slurry, precipitated sludge…
4. Pharmacy — delivery of drug liquids, harmful and corrosive materials…
5. Textile industry — delivery of fibers, dyes, additives…
6. Paper making and printing industry — delivery of paper slurry, ink, glue…
7. Ceramic and glass industry — delivery of glaze, slurry, pigment…
8. Brewing industry — delivery of beer or wine, treatment of wine sediment…
9. Food industry — delivery of beverage, cream, juice, milk, chocolate, addictive…
10. Chemical industry — delivery of corrosive, acid, alkali, phosphate liquid, inorganic materials, suspending liquid, electroplate liquid, precipitate …
11. OEM: customized pump manufacture for industrial corollary equipment.
KEMING industrial hose pump is composed of pump head, pump shell, squeeze roller, recovery roller, squeeze hose, and driving system.
Squeeze roller makes planetary motion along the U shape squeeze hose. When the squeeze roller runs, squeeze hose gets elastic deformation because of extruded force.
The materials is sucked in through inlet by negative pressure and push out through outlet by squeeze roller. Along with the cyclic squeezing of roller, the materials is pumped continually.
Data:
| model | rated output m3/h | rated pressure MPa | rated power kw | max.aggregate size mm | max.suction dist. m |
| KH-15 | 0.3 | 0.6 | 0.55 | 2 | 2 |
| KH-25 | 0.8-1.3 | 1.5 | 1.1/1.5 | 3 | 3 |
| KH-32 | 1.3-1.8 | 1.5 | 2.2 | 3 | 4 |
| KH-40 | 2.0-3.5 | 1.5 | 2.2/4 | 4 | 4 |
| KH-50 | 4.0-8.0 | 1.5 | 4/5.5 7.5 | 5 | 5 |
| KH-65 | 9.0-15.0 | 1.0 | 7.5/11 | 6 | 5 |
| KH-75 | 15.0-30.0 | 1.0 | 11/15 | 6 | 5 |
| KH-90 | 30.0-40.0 | 1.0 | 15/18 | 8 | 5 |
| KH-100 | 40.0-50.0 | 1.0 | 15/18 | 8 | 5 |
| KH-130 | 50.0-70.0 | 1.0 | 18/22 | 10 | 5 |
| KH-150 | 70.0-80.0 | 1.0 | 22/30 | 10 | 5 |

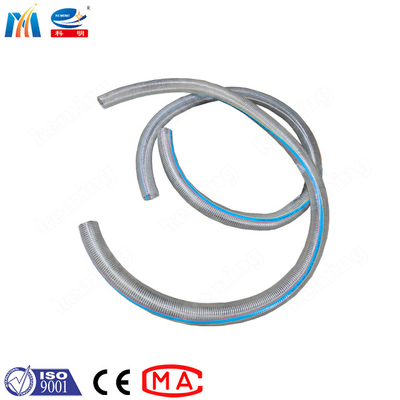

Spare parts:
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Achievements: It has more than 20 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Service: mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
