Product Details:
Payment & Shipping Terms:
|

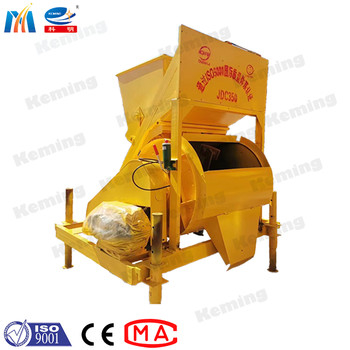

| Product: | JDC Type Single Shaft Forced Concrete Mixer | Particle Size: | 80mm |
|---|---|---|---|
| Power: | 25KW | After-sales Service: | Technical Supports |
| High Light: | Single Shaft Forced Grout Concrete Mixer,JDC Type Grout Concrete Mixer,80mm Grout Concrete Mixer |
||
1. JDC type single-horizontal shaft forced concrete mixer is a new type of multifunctional mixing machine.
2. The wheeled type is suitable for small and medium-sized prefabricated component factories and various construction sites. It is the most convenient to install in conversion sites.
JDC Type Single Shaft Forced Concrete Mixer Application:
1. The fixed type is more excellent when matched with a one-ton motor dump truck.
2. JDC type single-horizontal shaft forced concrete mixer is a new type of multifunctional mixing machine.
| Model | JDC350 | JDC500 |
| Discharging capacity (L) | 350 | 500 |
| Charging capacity (L) | 560 | 800 |
| Productivity(m3/h) | 17.5 | 20-30 |
| Max size of aggregate(mm) | 60/40 | 80/60 |
| Stirring shaft speed(r/min) | 27.6 | 24 |
| Total power(kW) | 20.25 | 25.1 |
| Stiring time(s) | 30 | 30 |
| Dimensions (length * width *height)(mm) | 3100x2450x3200 | 3800x2650x3400 |
| Total Weight(kg) | 3200 | 4700 |
