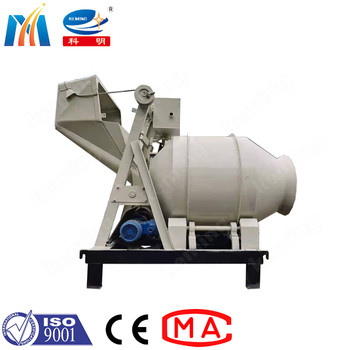

JZM Friction Concrete Grout Mixer Machine Applied For Civil Mixing 60mm

Large Image : JZM Friction Concrete Grout Mixer Machine Applied For Civil Mixing 60mm

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE, MA
Model Number:	JZM Friction Concrete Mixer

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Packing
Delivery Time:	5~8 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Per Month

Contact Now

Detailed Product Description

Product:

JZM Friction Concrete Mixer

Productivity:

12-18M³/H

Maximum Aggregate Diameter:

After-sales Service:

Technical Video Supports

Highlight:

Friction Concrete Grout Mixer Machine

Concrete Grout Mixer Machine For Civil

60mm Concrete Grout Mixer Machine

Low in Price with Good Quality JZM Friction Concrete Mixer Applied for Civil Mixing

JZM Friction Concrete Mixer Introduction:

1. JZM friction concrete mixer is also called friction mixer.

2. It is a concrete mixer model driven by rubber roller friction.

3. This mixer is a drum type concrete mixer with positive rotation mixing and reverse discharge type.

JZM Friction Concrete Mixer Feature:

1. JZM friction concrete mixer has low noise and stable operation.

2. It has the advantages of convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.

3. It is a type of equipment between forced mixers and civil mixers.

JZM Friction Concrete Mixer Technical Parameters:

Model	JZM350	JZM400	JZM450	JZM500
Charging volume (L)	350	400	450	500
Discharging capacity (L)	560	640	720	800
Productivity (m3/h)	10-13	12-18	14-19	16-20
Rev of drum (r/min)	15	15	15	15
Max. Aggregate size (mm)	60	60	60	60
Water-supply error	≤2%	≤2%	≤2%	≤2%
Stirring motor(kW)	5.5	5.5	7.5	5.5*2
Hoisting motor(kW)	4.5	4.5	4.5	4.5
Water pump motor(kw)	0.55	0.75	0.75	1.1
Tires	650-16	650-16	700-16	700-16
Towing speed(km/h)	≤20	≤20	≤20	≤20
Dimension(LWH)(m)	3.82.052.69	3.82.22.85	42.32.9	5.72.355.1
Machine Weight (kg)	1950	2100	2400	2800
