| Product: | KGP Model Grout Plant Grout Unit | Capacity: | 50-220L/min |
|---|---|---|---|
| Weight: | 1100-1200kg | After-sales Service Provided: | Technical Support Online Support |
| High Light: | 5mm Particle Grout Plant,220L/min Grout Plant,Compaction Grouting Grout Unit |
||

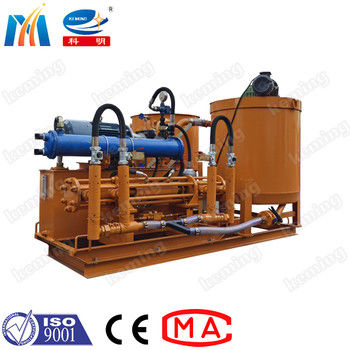

KEMING Grout Plant Grout Unit has double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.
KGP Model Grout Plant Grout Unit Feature:
1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.
2. Grouting pressure and displacement is adjustable.
3. The function switch between mixer and pulping machine is realized by using squeeze switch.
| Model |
KGP 200/500/50S |
KGP 200/500/50 |
KGP 300/750/80 |
KGP 400/850/100 |
KGP 500/1000/200 |
| Max output (L/min) | 50(70) | 50(60) | 80(100) | 100(120) | 200(220) |
| Max pressure (Mpa) | 4 | 7 | 16 | 7 | 9 |
| Mixer volume (L) | 200 | 200 | 300 | 400 | 500 |
| Storage volume (L) | 500 | 500 | 750 | 850 | 1000 |
| Total power (kw) | 12.5/18.5-E | 18/22-E | 29/37-E | 31.7/37-E | 29/37-E |
| 37-D | 48-D | 55-D | 55-D | 55-D |
