Product Details:
Payment & Shipping Terms:
|
| Condition: | New | After-sales Service Provided: | Instruction Book, Online Support |
|---|---|---|---|
| Discharge Way: | Automatic | Water Supply Mode: | Hand Control |
| Warranty: | 12 Month | Color: | Customized |
| Application: | Construction Site | Engine: | Electrical |
| Product Name: | Concrete Pan Mixer | ||
| High Light: | 750L Concrete Pan Mixer,flexible operation Concrete Pan Mixer,Diesel concrete pan mixer machine |
||

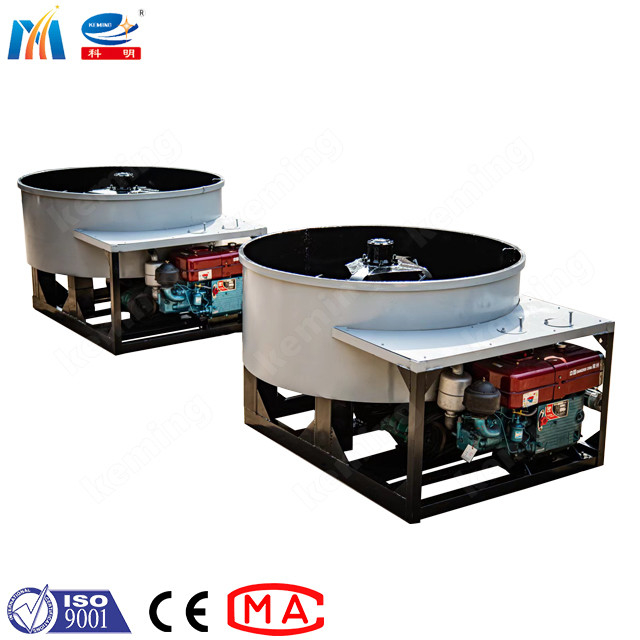

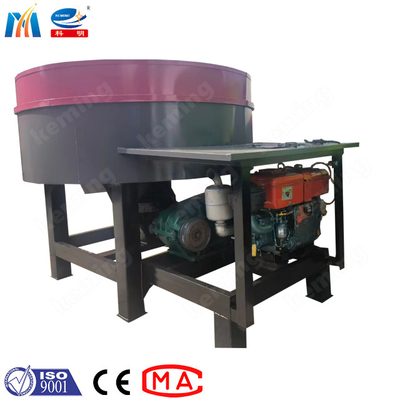

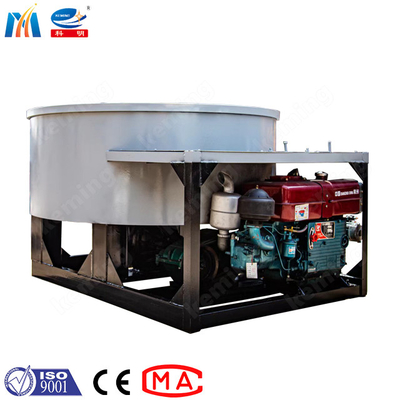

750 L Diesel Industrial Concrete Pan Mixer Round Mouth Dry Concrete Mixing With Mixing Blade
Products introduction:
This pan mixer has compact structure, simple structure, light weight, small volume, flexible operation, fast discharge and transfer Convenience, short mixing time, high rate, etc., charging, mixing and discharging are carried out periodically.
It is mainly used for mixing secondary concrete in concrete precast component plants and construction projects, or for mixing fine aggregate concrete and mortar, etc.
Working principle:
The pan mixer is composed of a pan body, a feeding arm, a frame, a reducer, a motor and other mechanisms. Its working method is to drive the reducer through the motor, and then drive the entire feeding arm to rotate at a uniform speed, so that the stirring blade of the feeding arm can uniformly feed the material. With the rotation of the dial arm so that the bored out evenly. The size of the discharge port can be controlled according to the needs to control the flow and ensure the normal production of the next process.
Specification:
| Model | JW250 | JW350 | JW500 | JW750 | JW1000 | JW1500 | JW3000 |
| Volume | 250L | 350L | 500L | 750L | 1000L | 1500L | 3000L |
| Productivity(m3/h) | 6--8 | 9--12 | 15-18 | 18-20 | 25-30 | 30-40 | 30-60 |
| Rotary speed(r/min) | 19 | 21 | 40 | 40 | 21 | 21 | 21 |
| Power(KW) | 5.5 | 5.5 | 7.5 | 11 | 13 | 15 | 22 |
|
Dimension(M) |
Φ1.1×1.1 | Φ1.2×1.4 | Φ1.3×1.4 | Φ1.5×1.4 | Φ1.8×1.4 | Φ1.8×1.6 | Φ2.5×1.8 |
Certification:
In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification. In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us will choose the most suitable machines for you!
