| Product: | KEMING Mechanical Grout Pump | Drive: | Electric Or Diesel Drive |
|---|---|---|---|
| Application: | Water Block In Tunnel, Mining Well | After-sales Service Provided: | Technical Video Support |
| High Light: | Mining Well Grout Pump Machine,Grout Pump Machine 7.5kw,Mining Well grouting pump |
||

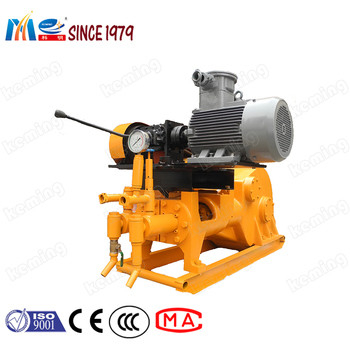

Mechanical Grout Pump Machine of KEMING has four gear shift for speed optional in every model.
KEMING Mechanical Grout Pump Feature
1. Convenient operation and maintenance.
2. Light weight, Small size, long endurance period, flexible movement. The pump can be landed on the groud and vertical shaft work platform, or fixed on the scooter in vertical shaft and level gateway orbit.
3. The pump can convey cement grout, slurry, oil, water glass, water etc.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
