Product Details:
Payment & Shipping Terms:
|
| Product: | High Pressure Mechanical Grout Pump Machine | Characteristics: | High Weight |
|---|---|---|---|
| Weight: | 1050-1070kg | After-sales Service Provided: | Technical Support |
| High Light: | Tunnel Cracks Grout Pump Machine,Grout Pump Machine light weight,Mechanical high pressure grouting machine |
||

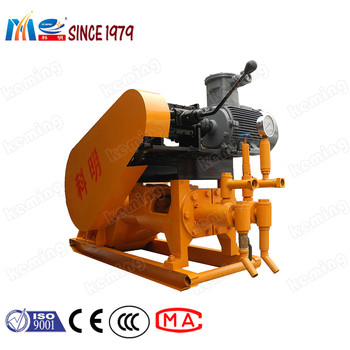

Mechanical Grout Pump Machine of KEMING has four gear shift for speed optionals.
High Pressure Mechanical Grout Pump Machine Feature
1. The pump can convey cement grout, slurry, oil, water glass, water etc.
2. Compact structure, high pressure, stable performance, for speed threshold, adjustable grout volume and grout pressure.Small size, light weight, convenient movement.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
