Product Details:
Payment & Shipping Terms:
|
| Product: | Mechanical Grout Pump Machine | Capacity: | 16-120L/min |
|---|---|---|---|
| Certification: | CE, ISO | After-sales Service Provided: | Technical Support |
| High Light: | Mechanical Grout Pump Machine CE,Grout Pump Machine 120L/min,Light weight Cement Grouting Pump |
||

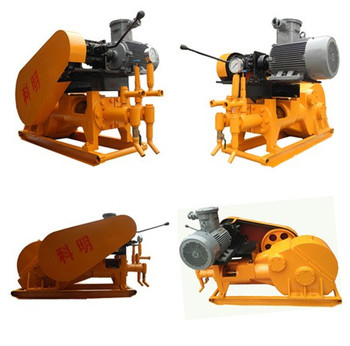

Mechanical Grout Pump Machine of KEMING has four gear shift for speed optional in every model.
Mechanical Grout Pump Machine Feature
1. Compact structure, high pressure, stable performance, for speed threshold, adjustable grout volume and grout pressure.Small size, light weight, convenient movement.
2. Light weight, Small size, long endurance period, flexible movement. The pump can be landed on the groud and vertical shaft work platform, or fixed on the scooter in vertical shaft and level gateway orbit.
| Model | Rev. | Suction volume L/min | Max. grouting pressure Mpa | Motor KW |
| 2TGZ-60/210 | 1 gear | 16 | 21 | 7.5 |
| 2 gear | 19 | 18 | ||
| 3 gear | 36 | 9.5 | ||
| 4 gear | 60 | 6 | ||
| 2TGZ-90/140 | 1 gear | 24 | 14 | 7.5 |
| 2 gear | 29 | 12 | ||
| 3 gear | 54 | 6 | ||
| 4 gear | 90 | 4 | ||
| 2TGZ-120/105 | 1 gear | 32 | 10.5 | 11 |
| 2 gear | 38 | 9 | ||
| 3 gear | 72 | 5 | ||
| 4 gear | 120 | 3 |
