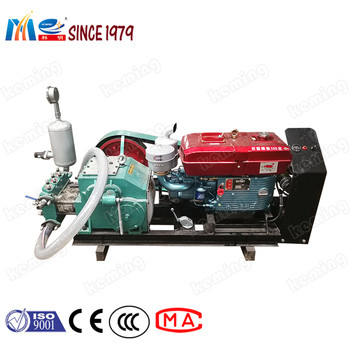

KBW160 Triplex Slurry Cement Grout Pump 160 L/Min Horizontal Hydraulic Engineering

Large Image : KBW160 Triplex Slurry Cement Grout Pump 160 L/Min Horizontal Hydraulic Engineering

Product Details:

Place of Origin:	CHINA
Brand Name:	HENAN KEMING
Certification:	CE, MA
Model Number:	KBW160 Horizontal Triplex Slurry Grout Pump

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Packing
Delivery Time:	5~8 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Per Month

Contact Now

Detailed Product Description

Product:

KBW160 Horizontal Triplex Slurry Grout Pump

Power:

Capacity:

44-160 L/min

After-sales Service Provided:

Video Support Online

Highlight:

160 L/min Cement Grout Pump

Horizontal Triplex Slurry Grout Pump

KBW160 Cement Grout Pump

Hydraulic Engineering KBW160 Horizontal Triplex Slurry Grout Pump with Best Selling

KBW160 Horizontal Triplex Slurry Grout Pump Introduction:

KBW160 Horizontal Triplex Slurry Grout Pump has four pressure shifts to adjust, from 2.5 to 10 Mpa. Though the adjustment of pressure, the flow capacity can be according adjust.

KBW160 Horizontal Triplex Slurry Grout Pump Application:

KBW160 Horizontal Triplex Slurry Grout Pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth) etc.

KBW160 Horizontal Triplex Slurry Grout Pump Technical Parameters:

Model	Capacity (L/min)	Pressure (Mpa)	Motor power (KW)
KBW50	50	3	5.5
KBW60	60	6	7.5
KBW70	70	8	11
2ZBSY	30	8	7.5
	50	6.5
	70	4
	120	2.5
KBW150	150	1.8	7.5
	90	3.2
	58	4.8
	38	7
	125	2.3
	72	4
	47	6
	32	7
KBW160	160	2.5	11
	107	4
	67	6.5
	44	10
KBW250	250	2.5	15
	145	4.5
	90	6
	42	6
KBW320	320	4	30
	230	5
	165	6
	118	8
