KBW Horizontal Triplex Grout Pump High Pressure Machine With Pressure Monitor

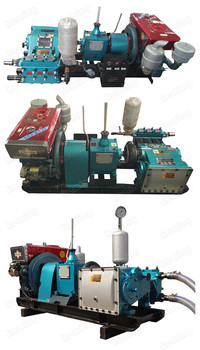

Large Image : KBW Horizontal Triplex Grout Pump High Pressure Machine With Pressure Monitor

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE, MA
Model Number:	KBW Horizontal Triplex Grout Pump

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Packing
Delivery Time:	5~8 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Per Month

Contact Now

Detailed Product Description

Product:

KBW Horizontal Triplex Grout Pump

Application:

Cement Mortar Pump

Theoretic Output:

50-320 L/min

After-sales Service Provided:

Online Technical Support

Highlight:

KBW Horizontal Triplex Grout Pump

High Pressure Triplex Grout Pump

320 L/min Triplex Grout Pump

High Pressure Machine KBW Horizontal Triplex Grout Pump with Pressure Monitor

KBW Horizontal Triplex Grout Pump Introduction:

KBW Horizontal Triplex Grout Pump is widely used for grouting and mud jacking in engineering construction.

KBW Horizontal Triplex Grout Pump Feature

1.KBW160/10 slurry pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth) etc.

2. KBW250 slurry pump have two cylinders with different diameters and four gear shifts. Output and drilling depth are adjustable, so it can be used to grout cement slurry or equipped with 1500m drilling machine.

KBW Horizontal Triplex Grout Pump Technical Parameters:

Model	Capacity (L/min)	Pressure (Mpa)	Motor power (KW)
KBW50	50	3	5.5
KBW60	60	6	7.5
KBW70	70	8	11
2ZBSY	30	8	7.5
	50	6.5
	70	4
	120	2.5
KBW150	150	1.8	7.5
	90	3.2
	58	4.8
	38	7
	125	2.3
	72	4
	47	6
	32	7
KBW160	160	2.5	11
	107	4
	67	6.5
	44	10
KBW250	250	2.5	15
	145	4.5
	90	6
	42	6
KBW320	320	4	30
	230	5
	165	6
	118	8
