Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel
Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel

Large Image :  Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KGJ series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3000-4500USD per set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: T/T, Western Union
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New Reclaiming Capacity: 250-400L
Outline Dimension: Vary With The Model Mixing Power: 4-5.5 Kw
Speed Of Mixing Drum: 960-1440 R/min After-sales Service Provided: Instruction Book, Online Support
Warranty: 12 Months Color: Yellow, Blue, Customized
Weight: Vary With The Model
High Light:

Piston Grout Pump Grouting Station

,

Two Barrels Piston Grout Pump

Piston Grout Pump Grouting Station With Two Barrels Concrete Cement Mixing Barrel And Storage Barrel



Application:

1. The machine is mainly used to cement grouting project.
2. It can be equipped with grout pump and used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.





Working principle :

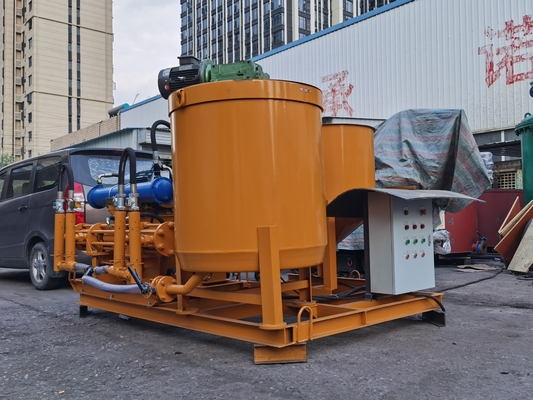

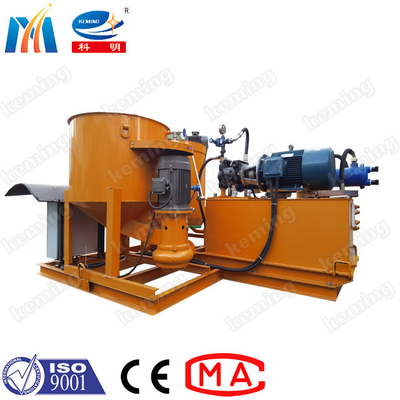

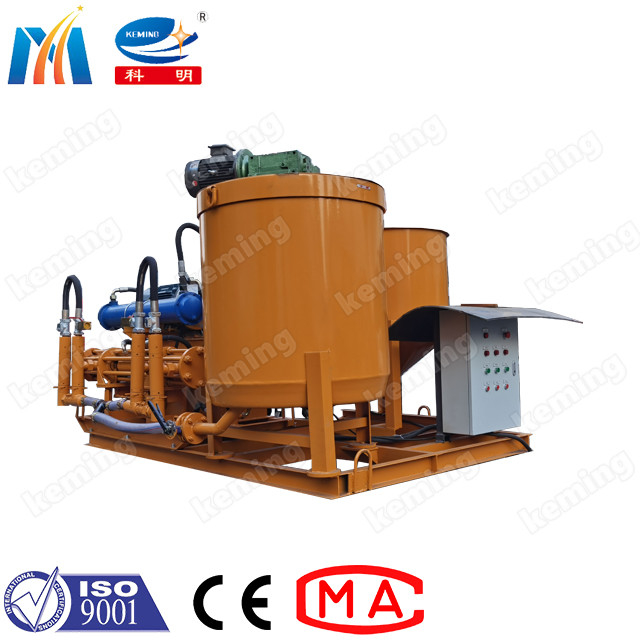

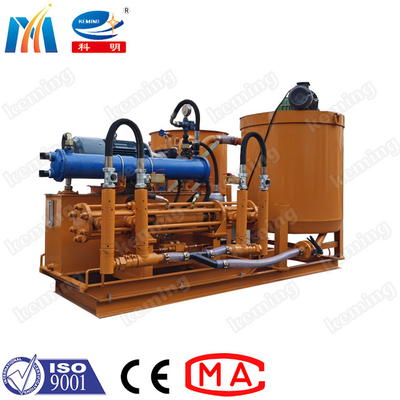

The KGP400-700-80 grouting pump group is mainly composed of a quick pulping machine, a mixing and storage slurry tank, a hydraulic grouting pump, an integral base, and an electric control cabinet (see the overall picture). The pulping machine makes rapid pulping, mixing and storage slurry tank for storage material, and the grouting machine sucks and sprays the slurry to form the entire system, which is simple and convenient to operate.

When working, add cement and water in proportion to the slurry cylinder. The materials in the cylinder flow and mix uniformly at high speed under the action of the slurry pump. The prepared slurry is fed into the storage cylinder through the gate valve; the storage cylinder is equipped with agitator to prevents the slurry from depositing; the hydraulic grouting pump is a double-cylinder double-acting piston pump. The high-pressure oil produced by the oil pump pushes the piston in the oil cylinder to reciprocate, and the piston of the grouting cylinder also reciprocates at the same time, and cooperates with the suction and discharge valve group to suck materials from the mixing and storage slurry tank to complete the suction and discharge work of the slurry cylinder.



Features:

1. KGJ series has high grout making speed, high efficiency, large volume, suitable for all kinds of grouting projects.
2. The machine adopts turbo pump to make grout, and high-speed centrifugal mixer to ensure uniform mixing and no precipitation.
3. The motor adopts vertical installation with well sealing effect and low failure rate.
4. Simple structure, no wearing parts, easy maintenance.

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 0

Specification:

grouting pump rated capacity 8m³/h
grouting pump rated pressure 7MPa
grouting pump reciprocating stroke 50~0times/min
grouting pump double liquid ratio 1:1
grouting pump oil tank volume 200L
grouting pump hydraulic oil quality 46/68anti friction hydraulic oil
grouting pump motor power 18.5kW
quick pulping machine tank volume 400L
quick pulping machine motor power 7.5kW
mixing and storage tank storage tank volume 700L
mixing and storage tank motor power 2.2kW

Related machines:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 1

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 2

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 3Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 4Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 5

Why choose us:

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 6

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.

Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 7Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 8

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 9Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 10

Exhibition:

Bauma Shanghai 2018

Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 11Piston Grout Pump Station With Two Barrels Concrete Cement Mixing Storage Barrel 12

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
