Product Details:
Payment & Shipping Terms:
|

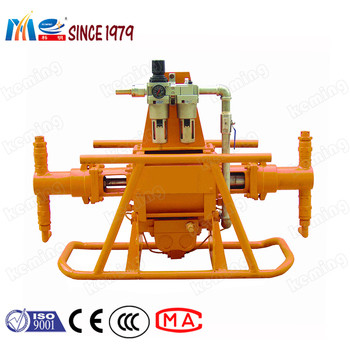

| Product Name: | KEMING Pneumatic Driven Grouting Pump | Capacity: | 10-70L/min |
|---|---|---|---|
| Pressure: | 2-30Mpa | Warranty Service: | Technical Support Video |
| High Light: | Pneumatic Driven Grouting Pump,70L/min Cement Grouting Pump,Cement Grouting Pump For Coal |
||
1. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
2.The Pneumatic Grout Pump of KEMING has single or double liquid grouting function.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
| Items | Parameters | |
| 2ZBQ-10/3 | ZBQ-25/2 | |
| Pressure(Mpa) | 0-3 | 0-5.5 |
| Output(L/min) | 0-14 | 0-30 |
| Working aire pressure(Mpa) | 0.2-0.63 | |
| Inlet dia. (mm) | 25 | 38 |
| Outlet dia.(mm) | 13 | 19 |
| Items | Parameters | ||||
| 2ZBQ-20/4 | 2ZBQ-10/10 | 2ZBQ-70/7 | 2ZBQ-30/30 | 2ZBQ-50/19 | |
| Output pressure Mpa | 4 | 10 | 7 | 30 | 19 |
| Output capacity L/min | 20 | 10 | 70 | 30 | 50 |
| Working air pressure Mpa | 0.2-0.63 | ||||
|
Outlet dia. mm |
25 | ||||
| Inlet dia. mm | 13 | 19 | |||
KEMING Pneumatic Driven Grouting Pump Application:
1. KEMING Air Driven Grout Pump uses compressed air to transmit pressure signal.
2.The Pneumatic Grout Pump of KEMING has single or double liquid grouting function.
3. It can be used to transport water, cement slurry, water glass or other less viscous and corrosive liquids.
FAQ
---Cement Pump, Mortar Pump, Mud Pump
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
