Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

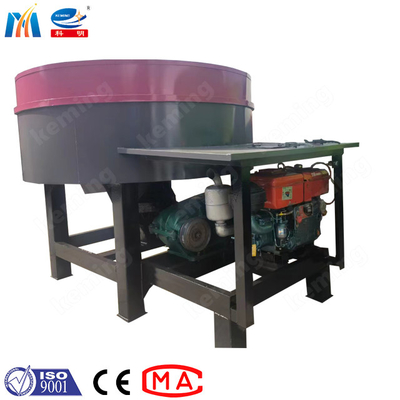

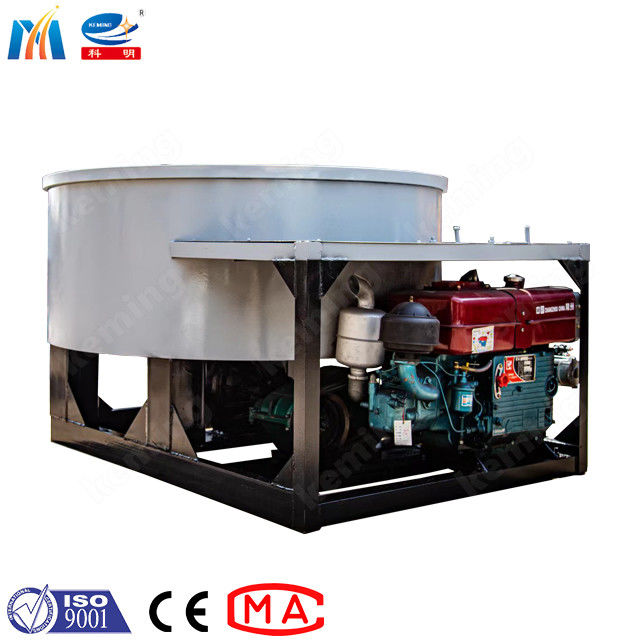

Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate

Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate
Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate
video play

Large Image :  Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KJW - 750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-3500USD per set
Packaging Details: wooden box
Delivery Time: 2-3weeks
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 20 sets per month
Detailed Product Description
Condition: New Outline Dimension: 2600*1650*1300mm
After-sales Service Provided: Instruction Book, Online Support Discharge Way: Automatic
Water Supply Mode: Hand Control Warranty: 1 Year
Color: Customized Application: Construction Site
Engine: Diesel Product Name: Concrete Pan Mixer
High Light:

Flat Mouth Mixer Diesel Pan

,

750L Mixer Diesel Pan

,

Concrete Aggregate Mixer Diesel Pan

High Quality Of Mixing Blade 750 L Flat Mouth Mixer Diesel Pan Mixer Concrete Aggregate Mixing


The practical scope of the mixer:

1. Large, medium and small prefabricated parts factories and industrial and civil construction engineering construction units;

2 Various types of mixing dry-hardness, plasticity, fluidity, light orthopaedic concrete and various mortars

3 mortar, mixing of mortar;

4 Prefabricated components factory, brick factory.



Working principle:

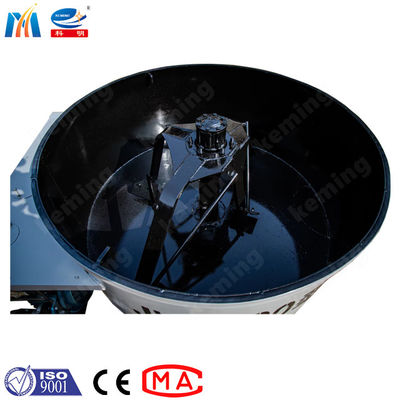

The pan mixer is composed of a pan body, a feeding arm, a frame, a reducer, a motor and other mechanisms. Its working method is to drive the reducer through the motor, and then drive the entire feeding arm to rotate at a uniform speed, so that the stirring blade of the feeding arm can uniformly feed the material. With the rotation of the dial arm so that the bored out evenly. The size of the discharge port can be controlled according to the needs to control the flow and ensure the normal production of the next process.



Specification:



Model JW250 JW350 JW500 JW750 JW1000 JW1500 JW3000
Volume 250L 350L 500L 750L 1000L 1500L 3000L
Productivity(m3/h) 6--8 9--12 15-18 18-20 25-30 30-40 30-60
Rotary speed(r/min) 19 21 40 40 21 21 21
Power(KW) 5.5 5.5 7.5 11 13 15 22

Dimension(M)
(diameter*height)

Φ1.1×1.1 Φ1.2×1.4 Φ1.3×1.4 Φ1.5×1.4 Φ1.8×1.4 Φ1.8×1.6 Φ2.5×1.8


Certification:

It has more than 50 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province.

It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 0Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 1Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 2

Why choose us:
Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 3
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 4
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 5Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 6Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 7
Exhibition:
Bauma Shanghai 2018
Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 8Mixing Blade Flat Mouth Mixer Diesel Pan 750L Concrete Aggregate 9
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us will choose the most suitable machines for you!
