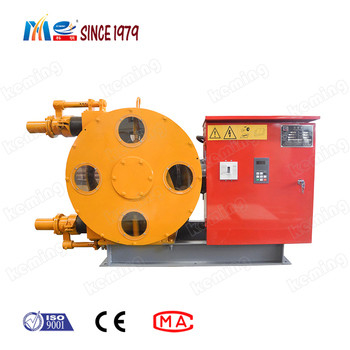

Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate

Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate
Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate
video play

Large Image :  Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Viscous Material Applicable KEMING Industrial Hose Pump
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product Name: Viscous Material Applicable KEMING Industrial Hose Pump Capacity: 110m3/h
Max. Output Pressure: 1.5MPa Warranty Service: Technical Service Support
High Light:

Viscous Material Industrial Hose Pump

,

110m3/h Industrial Hose Pump

,

1.5 MPa Industrial Hose Pump

Viscous Material Applicable KEMING Industrial Hose Pump with Low Fault Rate

Viscous Material Applicable KEMING Industrial Hose Pump Features:

1. No valve operation, no back flow, stable pumping flow, low fault rate.

2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.

3. High vacuum, strong self-suction capacity.

4. Convenient maintenance, less wearable parts (except extruded hose).

Viscous Material Applicable KEMING Industrial Hose Pump Technical Parameters:

Model Rated output m3/h Rated pressure Rated power kw Max. aggregate size mm Max. suction dist. m
KH15 0.3 0.6 0.55 2 2
KH25 0.8-1.3 1.5 1.1/1.5 3 3
KH32 1.3-1.8 1.5 2.2 3 4
KH40 2.0-3.5 1.5 2.2/4 4 4
KH50 4.0-8.0 1.5 4/5.5/7.5 5 5
KH65 9.0-15.0 1.0 7.5/11 6 5
KH75 15.0-30.0 1.0 11/15 6 5
KH90 30.0-40.0 1.0 15/18 6/8(soft) 5
KH100 40.0-50.0 1.0 15/18 6/8(soft) 5
KH130 50.0-70.0 1.0 18/22 6/10(soft) 5
KH150 70.0-80.0 1.0 22/30 6/10(soft) 5
KH200 100.0-110.0 1.0 30/37 6/15(soft) 5



Viscous Material Applicable KEMING Industrial Hose Pump Application:

1. No valve operation, no back flow, stable pumping flow, low fault rate.

2. Free exchange of suction inlet and discharge outlet. When the pump is blocked, reversing pump can discharge the obstruction.

3. High vacuum, strong self-suction capacity.

4. Convenient maintenance, less wearable parts (except extruded hose).



Viscous Material Industrial Hose Pump 1.5 MPa With Low Fault Rate 0



FAQ



---Plastering Machine, Cement Mortar Spraying Machine

1. Q: Which plastering machine should we choose?

A: To recommend the most suitable model, please tell us:

- Material: putty, cement, mortar, or other materials;

dry / damp mixture, or ready mixed wet mixture

- Capacity: 120m2/h, 150m2/h, 160m2/h, 180m2/h

- Delivery distance (horizontally / vertically):

- Driven type: electric motor, diesel engine



2. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.



3. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;

L/C at sight (high bank charge, not suggest, but acceptable);

100% TT in advance (especially for small amount and spare parts etc.)
