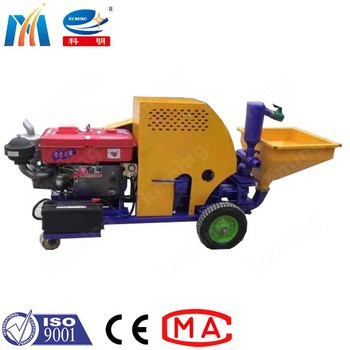

KZW Mortar Spraying Machine With Faster Speed Diesel Motor

Large Image : KZW Mortar Spraying Machine With Faster Speed Diesel Motor

Product Details:

Place of Origin:	CHINA
Brand Name:	KEMING
Certification:	CE, MA
Model Number:	Diesel Motor KZW Mortar Spraying Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Export Wooden Packing
Delivery Time:	5~8 Work Days
Payment Terms:	T/T, L/C
Supply Ability:	100 Sets/Per Month

Contact Now

Detailed Product Description

Product Name:

Diesel Motor KZW Mortar Spraying Machine

Max. Mortar Ratio:

Capacity:

6m3/h

Warranty Service:

Online Technical Service

Highlight:

Diesel Motor Mortar Spraying Machine

6m3/h Mortar Plastering Machine

Mortar Plastering Machine With Faster Speed

Diesel Motor KZW Mortar Spraying Machine with Faster Speed Than Similar Machine

Diesel Motor KZW Mortar Spraying Machine Features:

1. KZW mortar spraying machine is based on years of experience and some advanced foreign technology.

2. To be long, the speed is faster than the similar machine.

3. It is a double cylinder four-speed plunger type equipment.

4. It is more than the life of various screw type spraying equipment used in the market.

Diesel Motor KZW Mortar Spraying Machine Technical Parameters:

Technical parameters	High speed 1	High speed 2	High speed 3	High speed 4
Max. conveying capacity	6m3/h	4m3/h	3m3/h	2m3/h
Horizontal conveying dist.	150m	100m	80m	80m
Vertical conveying dist.	60m	40m	30m	30m
Maximum mortar ratio	1:3
Displacement of air compressor	0.36m3/min
Air compressor power	3kw
Total weight	500kg
Outline size	2000850950mm
Main engine power	11kw

Diesel Motor KZW Mortar Spraying Machine Application:

1. KZW mortar spraying machine is based on years of experience and some advanced foreign technology.

2. To be long, the speed is faster than the similar machine.

3. It is a double cylinder four-speed plunger type equipment.

4. It is more than the life of various screw type spraying equipment used in the market.

KZW Mortar Spraying Machine With Faster Speed Diesel Motor 0

Company Main Products:

wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
