Product Details:
Payment & Shipping Terms:
|
| Product Name: | KZW Mortar Plastering Machine | Air Compressor: | 0.36 M3/min |
|---|---|---|---|
| Max. Aggregate Size: | 4 Mm | Warranty Service: | Online Provided Service |
| High Light: | Bird Shaped Plastering Machine,4 mm Spraying Plastering Machine,KZW Mortar Spraying Plastering Machine |
||

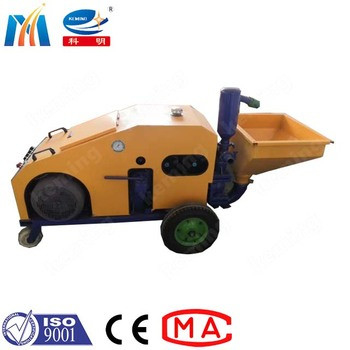

KZW mortar spraying machine is suitable for: dry mixed mortar, thermal insulation mortar, masonry mortar, reinforced mortar, self-leveling mortar spraying and conveying, the machine uses four-speed variable pressure control protection mechanism to achieve remote control.
| Technical parameters | High speed 1 | High speed 2 | High speed 3 | High speed 4 |
| Max. conveying capacity | 6m3/h | 4m3/h | 3m3/h | 2m3/h |
| Horizontal conveying dist. | 150m | 100m | 80m | 80m |
| Vertical conveying dist. | 60m | 40m | 30m | 30m |
| Maximum mortar ratio | 1:3 | |||
| Displacement of air compressor | 0.36m3/min | |||
| Air compressor power | 3kw | |||
| Total weight | 500kg | |||
| Outline size | 2000*850*950mm | |||
| Main engine power | 11kw | |||
KZW Mortar Plastering Machine Application:
KZW mortar spraying machine is suitable for: dry mixed mortar, thermal insulation mortar, masonry mortar, reinforced mortar, self-leveling mortar spraying and conveying, the machine uses four-speed variable pressure control protection mechanism to achieve remote control.
Company Business Scope:
As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
