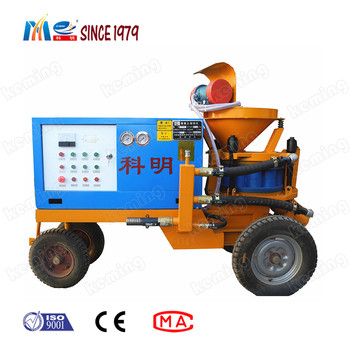

Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet

Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet
Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet
video play

Large Image :  Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KSP-7 KEMING KSP Shotcrete Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: KEMING Dry/Wet Shotcrete MachineKSP-7 KEMING KSP Shotcrete Machine Spraying Hose Id.: 51/57 /64mm
Rebound Rate: ≤10% (on Average ) After-sales Service: Online Video Support
High Light:

Concrete Mixture KSP Shotcrete Machine

,

64mm Wet Mix Shotcrete Machine

Well Mixed Concrete Mixture KEMING KSP Shotcrete Machine Used for Both Dry And Wet Method

KSP-7 KEMING KSP Shotcrete Machine Information:

1. KSP-7 KEMING KSP Shotcrete Machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.

2. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.

3. KSP-7 KEMING KSP Shotcrete Machine include Electric Shotcrete Machine (KSP-5, KSP-7, KSP-9), Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine (PS6I).

KSP-7 KEMING KSP Shotcrete Machine Technical Parameters:

Model

KSP-7

KSP-9

Capacity

5-7m³/h

7-9m³/h

Conveying distance

35m(WET)/120m(DRY)

30m(WET)/100m(DRY)

Max. aggregate size

20mm

Concrete slump

8~15cm

Conveying Pipe ID.

57mm

Rebound rate

≤10%(on average )

Air consumption

9-10m³/min

10m³/min

Motor power

7.5kw

Max. Pump discharge of accelerator

35-200L/h



KSP-7 KEMING KSP Shotcrete Machine Application:

1. Electric wet shotcrete machine is designed for spraying half wet or wet concrete.

2. The machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.

Concrete Mixture KSP Shotcrete Machine 64mm For Dry / Wet 0

Company introduction:



Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
