Product Details:
Payment & Shipping Terms:
|
| Product: | Shotcrete Machine Set | Applicable Materials: | Dry Dump Or Wet Concrete Mortar |
|---|---|---|---|
| Suitable Mixture Ratio: | Cement/sand And Gravel=1:3~5 | After-sales Service: | Online Video Support |
| High Light: | Dry Mix Shotcrete Machine With Feeder,380v Dry Mix Shotcrete Machine,Hydroelectric Works Dry Mix Shotcrete Machine |
||

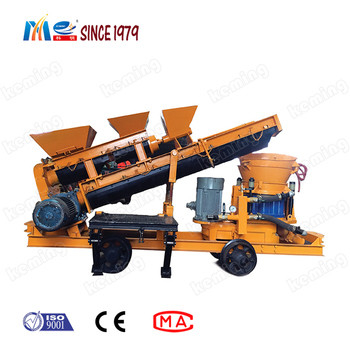

1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.
2. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
3. Shotcrete Machine Set includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.
|
Items |
Unit |
Technical parameters |
|
Model |
|
JPS7I-L Shotcrete Machine |
|
Capacity |
m3/h |
5~7 |
|
Conveying dist. |
m |
70/20 |
|
Suitable water and cement ratio |
|
cement/gravel=1:3-5 |
|
Aggregate size max. |
mm |
≤20 |
|
Conveying pipe ID. |
mm |
φ50 |
|
Operating pressure |
MPa |
0.2~0.4 |
|
Air consumption |
m3/min |
7-8 |
|
Material feeding height |
m |
1.2 |
|
Motor power |
kw |
5.5(feeder)/7.5(main motor) |
|
Voltage |
V |
380/660 or 660/1140 |
|
Machine gauge |
mm |
600(900) |
|
Dimensions (Length×width×height) |
mm |
2930×1152×1620 |
|
Total weight |
kg |
1250 |
Shotcrete Machine Set Application:
1. Shotcrete Machine Set has simplified operation,automatic feeding, convenient maintenance and cleaning.
2. Shotcrete Machine Set It has the advantages of advanced technology, rational structure, stable performance, convenient operation, and long service life.
3. Shotcrete Machine Set includes concrete spraying machine, grout making machine, delivery pump and auxiliary piping system.
FAQ
---Shotcrete Machine, Gunite Machine, Concrete Spraying Machine
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
