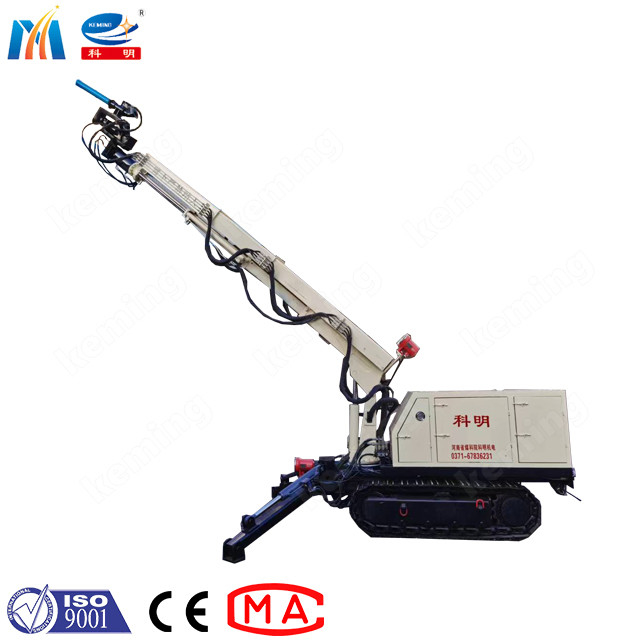

| Product: | KPC-8A KEMING Robotic Arm Machine | COLOR: | White, Yellow, Blue Or Customized |
|---|---|---|---|
| Hose ID: | Dia. 51/57/64mm | Maintencance: | Online Technic Support |
| High Light: | Concrete Sprayer Shotcrete Equipment,Robotic Shotcrete Equipment,Shotcrete Equipment With Remote Control |
||
1.KPC-8A KEMING Robotic Arm Machine is suitable for dry, wet or wet and dry mixing.
2.KPC-8A KEMING Robotic Arm Machine can be used in underground coal mine environment
3.KPC-8A KEMING Robotic Arm Machine adopts explosion-proof electrical design
1.independent hydraulic drive,
2.4 hydraulic legs, stable operation
3.unique protective cover
|
Parameter |
KPC-6A |
KPC-8A |
|
|
Max. operation length |
7000 |
8400 |
|
|
Outrigger expansion width |
2300 |
2500 |
|
|
Support shotcrete capacity m3/h |
0-10 |
0-25 |
|
|
Boom |
Max. spraying H |
6.2m |
8.2m |
| Max. spraying W | 7m | 11m | |
|
Hose id |
51/57/64mm |
||
|
Arm frame telescopic dis. |
2.35m |
2.7m |
|
|
Boom expansion max. L |
3.5m |
6m |
|
|
Chassis |
Max. walk gradient |
20% |
25% |
|
Walking speed |
0.6km/h |
0.5km/h |
|
|
Ground dis. |
150mm |
390mm |
|
|
Power |
Hydraulic system output |
7.5kw |
11kw |
|
Voltage |
380-1140V |
||
1.KPC-8A KEMING Robotic Arm Machine is suitable for dry, wet or wet and dry mixing.
2.KPC-8A KEMING Robotic Arm Machine can be used in underground coal mine environment
3.KPC-8A KEMING Robotic Arm Machine adopts explosion-proof electrical design
A: To recommend the most suitable model, please tell us:
- Material: dry / damp mixture, or ready mixed wet mixture
- Capacity: 3m3/h, 4m3/h, 5m3/h, 6m3/h, 7m3/h, 9m3/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, pneumatic motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
