Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsDry Mix Shotcrete Machine

0.5MPa Remote Conveying Gunite Machine With Crawler Chassis

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

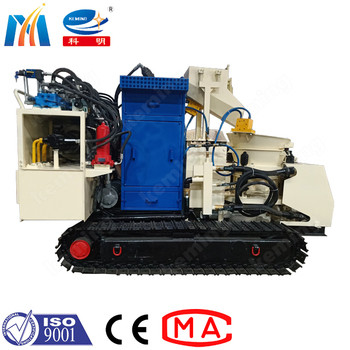

0.5MPa Remote Conveying Gunite Machine With Crawler Chassis

0.5MPa Remote Conveying Gunite Machine With Crawler Chassis
0.5MPa Remote Conveying Gunite Machine With Crawler Chassis
video play

Large Image :  0.5MPa Remote Conveying Gunite Machine With Crawler Chassis

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: Remote Conveying Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: Remote Conveying Gunite Machine Rated Working Pressure: 0.2-0.5MPa
Rotor Speed: 11r/min After Warranty Service: Online Video Support
High Light:

Crawler Chassis Remote Conveying Gunite Machine

,

0.5 MPa Remote Conveying Gunite Machine

,

11r/min Remote Conveying Gunite Machine

Convenient to move Remote Conveying Gunite Machine with crawler chassis

Remote Conveying Gunite Machine Information:

1. The friction plate is pressed hydraulically.

2. The friction plate and rotating liner are automatically lubricated.

3. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers

Remote Conveying Gunite Machine Technical Parameters:

raying part

Capacity

m3/h

2~7

Delivery distance

m

>300

Max. aggregate size

mm

≤20

Delivery pipe ID.

mm

φ51

Air consumption

m3/min

≤8

Rotor speed

r/min

11

Dedusting part

Capacity

m³/h

800

Pressure

Pa

2600

Walking mechanism

Way of walking

Crawler



Walking speed

km/h

≤1.5

Gradeability



≤15

Braking method



Hydraulic

Hydraulic system

Motor Power

kw

18.5

Fuel tank capacity

L

200

Cooling method



Air cooling


Remote Conveying Gunite Machine Application:

1. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.

2. The hydraulically driven crawler chassis travels automatically, which is convenient and fast to move.

3. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted.



0.5MPa Remote Conveying Gunite Machine With Crawler Chassis 0



Company Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
