Product Details:
Payment & Shipping Terms:
|

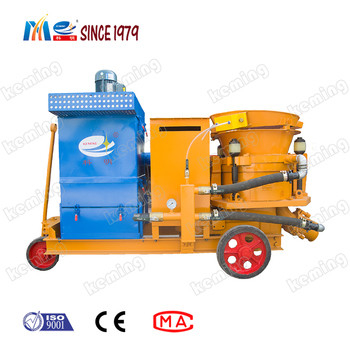

| Product: | KCPZ-4 KCPZ Model Dedusting Gunite Machine | Max Aggregate Size: | 20 Mm |
|---|---|---|---|
| Capacity: | 4/5/6/7m3/h | After Warranty Service: | Online Video Support |
| High Light: | KCPZ Model Dedusting Gunite Machine,20 mm Dedusting Gunite Machine,5m3/h Dedusting Gunite Machine |
||
1. KCPZ Model dedusting gunite machine can be applied in spraying dry, damp and wet mixture.
2. KCPZ Model dedusting gunite machine is a new environmental shotcrete machine, the polution is less than 90% of dust polution of traditional machine.
3. It obtains the Invention Patent and Utility Model Patent.
| Capacity | 4-5m3/h | 5-6m3/h |
| Delivery distance | 200m/40m(horizontal/vertical) | 100m/30m(horizontal/vertical) |
| Max. aggregate size | ≤18mm | ≤20mm |
| Delivery pipe ID. | 51mm | 51mm/57mm |
| Air consumption | ≥7m3/min | ≥8m3/min |
| Dust concentration | ≤15mg/m3 | ≤15mg/m3 |
| Main motor power | 5.5kw | 7.5kw |
| Auxiliary motor power | 1.1kw | 1.1kw |
| Capacity of accelerator adding hopper | 25kg | 25kg |
1. KEMING dedusting gunite machine can be used for dry, half wet or wet concrete spray construction.
2. KCPZ dedusting gunite machine has simple operation, compact structure, suitable for concrete operation in narrow space.
Company Information
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
