Payment & Shipping Terms:
|Keywords:||Dedusting Shotcrete Machine||Application:||Slope Supporting|
|Color:||Customized||Certification:||CE, ISO, MA|
|After-sales Service Provided:||Operation Instruction||Condition:||New|
|Dimension(l*w*h):||Vary With The Model||Voltage:||380V, 440V , Customized|
|Warranty:||1 Year||Product Name:||Shotcrete Machine|
440V Dry Aggregate Shotcrete Machine,
100 M Dry Aggregate Shotcrete Machine,
Motor Driven Dry Aggregate Shotcrete Machine

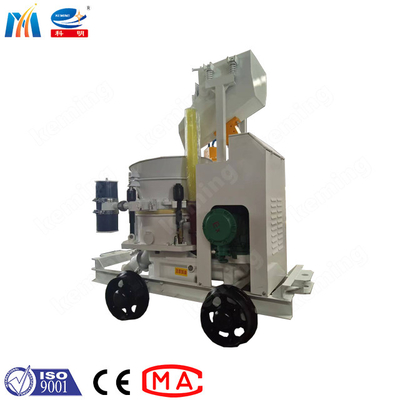

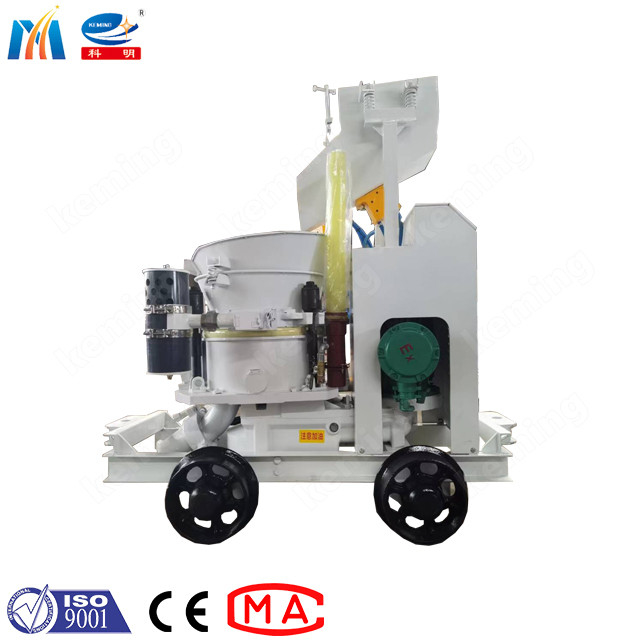

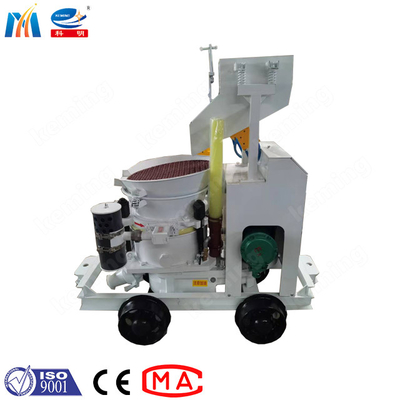

100 M Conveying Distance Dust Removal Dry Gunite Shotcrete Machine Driven By Motor
1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.
1. High conveying efficiency, good stirring effect, uniform mixing of shotcrete, less rebound material, and improve the quality of shotcrete.
2. It can realize automatic proportioning and continuous feeding of cement and sand and gravel, which can effectively reduce the labor intensity of operators and improve production efficiency.
3. The dust concentration beside the machine and outside the nozzle is greatly reduced, and the harm of dust to workers' health is reduced.
4. The structure is compact, the operation is simple and convenient, and the working performance is stable.
|Delivery distance||200m/40m (horizontal/vertical)||100m/30m (horizontal/vertical)|
|Max. aggregate size||≤18mm||≤20mm|
|Delivery pipe ID.||φ51mm||φ51mm/φ57mm|
|Dust concentration||≤15mg/ m3||≤15mg/ m3|
|Main motor power||5.5 kW||7.5 kW|
|Auxiliary motor power||1.1kW||1.1kW|
|Capacity of accelerator adding hopper||25kg||25kg|
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility: Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Bauma Shanghai 2018
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions, pls feel free to contact us , will choose the most suitable machines for you !
Contact Person: lisa Zhao
