Product Details:
Payment & Shipping Terms:
|

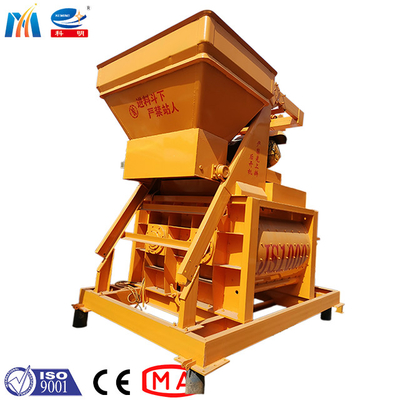

| Product: | JS750 KEMING JS Type Concrete Mixer | Charging Capacity: | 800-3200L |
|---|---|---|---|
| Max. Aggregate Size: | 40-80mm | After Warranty Service: | Video Technical Support |
| High Light: | JS Type Concrete Mixer,80mm Aggregate Concrete Mixer,3200L Aggregate Concrete Mixer |
||
1. JS series concrete mixer is a twin-shaft forced mixer.
2. It is suitable for all kinds of large, medium and small industrial and civil construction projects and prefabricated component factories such as docks, bridges, roads, waterways, etc.
3. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars.
4. It has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
5. It is a high-efficiency model and is widely used.
JS750 KEMING JS Type Concrete Mixer Application:
1. JS series concrete mixer is a twin-shaft forced mixer.
2. It is suitable for all kinds of large, medium and small industrial and civil construction projects and prefabricated component factories such as docks, bridges, roads, waterways, etc.
3. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars.
4. It has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
5. It is a high-efficiency model and is widely used.
| Model | JS500 | JS750 |
| Discharging capacity L | 500 | 750 |
| Charging capacity L | 800 | 1200 |
| Productivity m3/h | <25 | <35 |
| Max aggregate size mm | <40/50 | <40/50 |
| Mixing blade | 2*7 | 2*7 |
| Rev of drum r/min | 31 | 31 |
| Stiring motor kw | 18.5 | 30 |
| Lifting motor kw | 5.5 | 7.5 |
| Water pump motor kw | 1.1 | 1.5 |
| Dimension L*B*H mm | 4461*3050*4180 | 4951*3650*6225 |
| Model | JS1000 | JS1500 | JS2000 |
| Discharginh capacity L | 1000 | 1500 | 2000 |
| Charginh capacity L | 1600 | 2400 | 3200 |
| Productivity m3/h | 50 | 75 | 100 |
| Max aggregate size mm | 80/60 | 80/60 | 80/60 |
| Mixing blade | 25.5r/min 2*7 | 25.5r/min 2*8 | 23r/min 2*9 |
| Stirring motor kw | 37 or 18.5*2 | 30*2 | 37*2 |
| Lifting motor kw | 15 | 18.5 | 22 |
| Water pump motor kw | 2.2(up)3(down) | 3(up)4(down) | 4(up)5(down) |
| Hopper lifting speed m/min | 21.9 | 23 | 26.8 |
| Dimension L*B*H mm Transp | 4640*2250*2250 | 5058*2250*2440 | 5860*2250*2735 |
| Working mm | 8765*3436*9540 | 9645*3436*9700 | 10720*3870*10726 |
| Weight | 8700 | 11130 | 15000 |
| Discharge height mm | 4000 | 4000 | 4000 |
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
