Product Details:
Payment & Shipping Terms:
|
| Product: | KEMING JS Forced Concrete Mixer | Function: | Cement Concrete Mixing |
|---|---|---|---|
| Driving: | Electric And Diesel | After Warranty Service: | Video Technical Support |
| High Light: | Light Aggregate Concrete Mixer,500L Aggregate Concrete Mixer,Electric Diesel Aggregate Concrete Mixer |
||

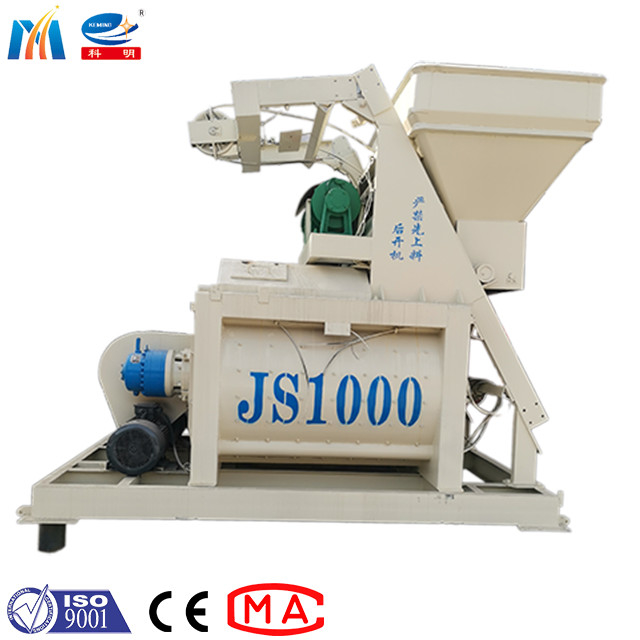

1. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
2. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.
3. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.
KEMING JS Forced Concrete Mixer Application:
1. JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine.
2. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc.
3. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.
| Model | JS500 | JS750 |
| Discharging capacity L | 500 | 750 |
| Charging capacity L | 800 | 1200 |
| Productivity m3/h | <25 | <35 |
| Max aggregate size mm | <40/50 | <40/50 |
| Mixing blade | 2*7 | 2*7 |
| Rev of drum r/min | 31 | 31 |
| Stiring motor kw | 18.5 | 30 |
| Lifting motor kw | 5.5 | 7.5 |
| Water pump motor kw | 1.1 | 1.5 |
| Dimension L*B*H mm | 4461*3050*4180 | 4951*3650*6225 |
| Model | JS1000 | JS1500 | JS2000 |
| Discharginh capacity L | 1000 | 1500 | 2000 |
| Charginh capacity L | 1600 | 2400 | 3200 |
| Productivity m3/h | 50 | 75 | 100 |
| Max aggregate size mm | 80/60 | 80/60 | 80/60 |
| Mixing blade | 25.5r/min 2*7 | 25.5r/min 2*8 | 23r/min 2*9 |
| Stirring motor kw | 37 or 18.5*2 | 30*2 | 37*2 |
| Lifting motor kw | 15 | 18.5 | 22 |
| Water pump motor kw | 2.2(up)3(down) | 3(up)4(down) | 4(up)5(down) |
| Hopper lifting speed m/min | 21.9 | 23 | 26.8 |
| Dimension L*B*H mm Transp | 4640*2250*2250 | 5058*2250*2440 | 5860*2250*2735 |
| Working mm | 8765*3436*9540 | 9645*3436*9700 | 10720*3870*10726 |
| Weight | 8700 | 11130 | 15000 |
| Discharge height mm | 4000 | 4000 | 4000 |
As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
