Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic
Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic

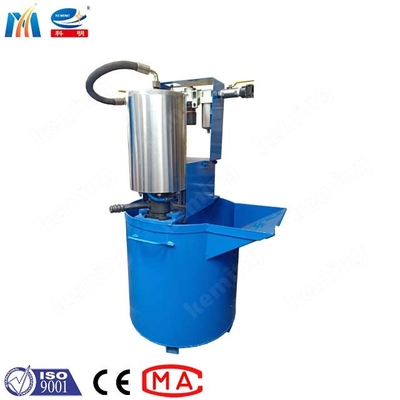

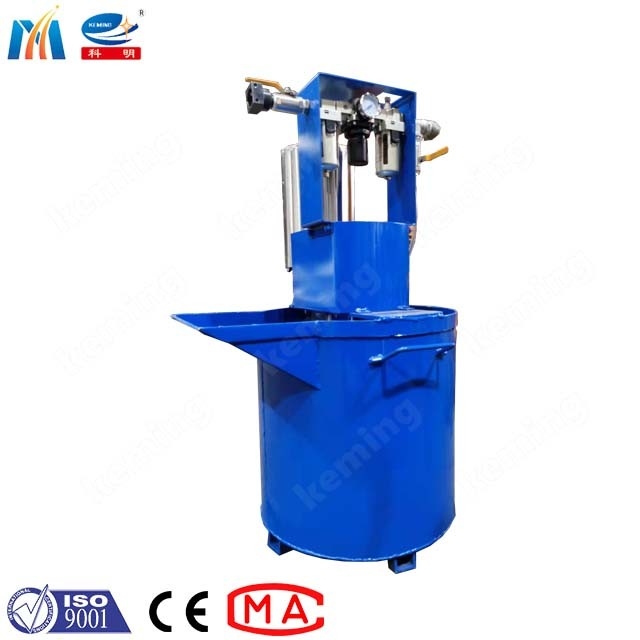

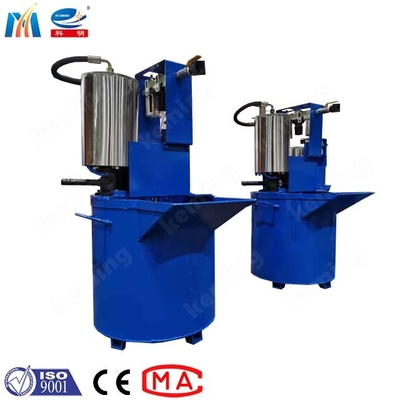

Large Image :  Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic

Product Details:
Place of Origin: China(mainland)
Brand Name: keming
Model Number: ZBQ-25/2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 set per month
Detailed Product Description
Certification: Ce,iso Weight: 50kg
Condition: New Power Type: Air Driven
Dimension(l*w*h): 720×710×1050mm Warranty: 1 Year
After-sales Service Provided: Online Support Color: Customized
Name: Air Grout Pump Type: Cement Slurry Pump
High Light:

Mixing Barrel Pneumatic Cement Grouting Pump

,

Small Scale Cement Grouting Pump

,

Cement Grouting Slurry Pump

ZBQ-25/2 Air Driven Grout Pump Cement Slurry Pumping And Grouting With Mixing Blade



Products introduction:

The air driven grout pump is mainly composed of: grouting pump, agitator, mixing barrel, inlet pressure gauge, slurry outlet slurry pressure gauge, special-shaped pipe fittings, regulating valve, quick connector, lubricator and other auxiliary components.

The compressed air enters the upper chamber of the cylinder through the air inlet, and the high-pressure gas acts on the upper end of the piston through the air passage to form a closed high-pressure chamber, which pushes the piston to move, and the gas in the lower chamber of the cylinder is discharged through the exhaust hole. When the piston runs to a certain stroke, the gas pushes the sliding plug to move, the direction of the air passage changes, the gas enters the lower chamber of the cylinder through the air passage, and pushes the piston to return, thereby realizing the continuous movement of the piston. Because the cylinder piston rod and the slurry cylinder piston rod share the same rod, the slurry suction and discharge function of the slurry cylinder is realized.
Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 0Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 1

Specification:
item
unit
parameter
air pressure
MPa
0.2~0.63
discharge slurry pressure
MPa
0~5.5
discharge slurry capacity
L /min
0~30
slurry cylinder diameter
mm
50
piston stroke
mm
97
air consumption
m³/min
≤2
noise sound pressure level
dB(A)
≤85
volume efficiency
/
90%
whole machine weight
kg
50
dimension
mm
720×710×1050(±20)
Applicable media

cement slurry,emulsion,water,oil

Certification:

It has more than 50 national invention patents and utility model patents, and more than 10 identification of relevant departments.

It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province.

It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 2Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 3Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 4

Company introduction:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 5

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 6Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 7

Cooperate Culture:
Enterprise Spirit:
Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:

Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 8Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 9

Exhibition:

Bauma Shanghai 2018

Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 10Small Scale Cement Grouting Pump Cement Grouting Slurry Pump Mixing Barrel Pneumatic 11

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
