|Model:||KH - 100||Warranty:||12month|
|Max Aggregate Size:||2-10mm||Power Engine:||Electric Driven|
|Name:||Hose Pump||Certificate:||CE, ISO, MA|
Juice Liquids Conveying Hose Pump,
18.5 Kw Industrial Hose Pump,
Hose Rubber Pump For Juice Conveying

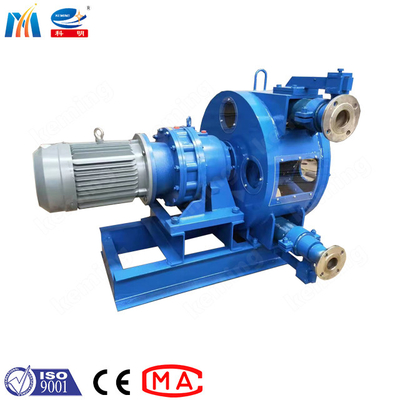

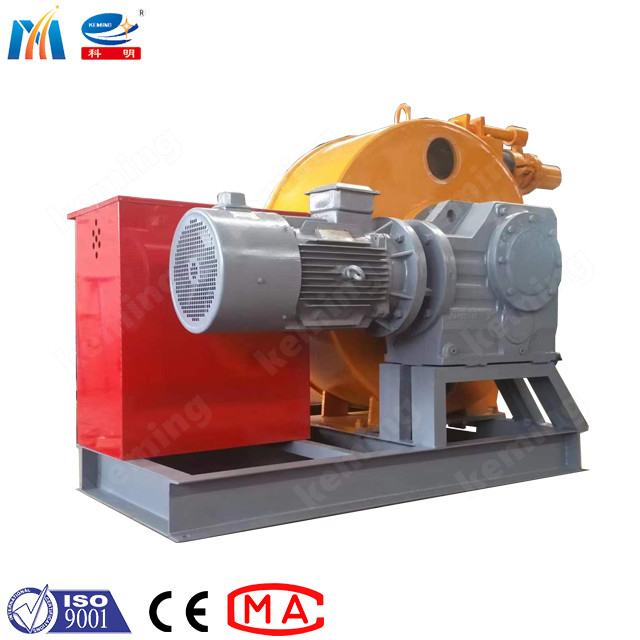

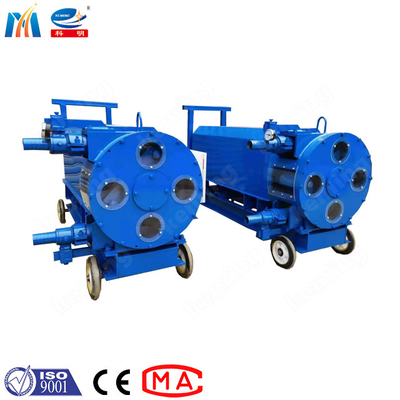

18.5 kw KH-100 Industrial Hose Pump Rubber pipe pump for juice liquids conveying
The hose pump can be used for various mining or chemical or other areas.
1. Construction — pump and spray of cement, mortar, plaster, slurry, fine aggregates concrete …
2. Mining industry — delivery of mining slurry, gold pulp, tailing, thick pulp, filling materials…
3. Water treatment — delivery of water, sewage, thick slurry, precipitated sludge…
4. Pharmacy — delivery of drug liquids, harmful and corrosive materials…
5. Textile industry — delivery of fibers, dyes, additives…
6. Paper making and printing industry — delivery of paper slurry, ink, glue…
7. Ceramic and glass industry — delivery of glaze, slurry, pigment…
8. Brewing industry — delivery of beer or wine, treatment of wine sediment…
9. Food industry — delivery of beverage, cream, juice, milk, chocolate, addictive…
10. Chemical industry — delivery of corrosive, acid, alkali, phosphate liquid, inorganic materials, suspending liquid, electroplate liquid, precipitate …
11. OEM: customized pump manufacture for industrial corollary equipment.
Common maintenance methods for hose pumps are as follows:
1. Check whether the pipes of the hose pump are unobstructed, whether the hose joints are loose, and whether the pump head and rollers are manually rotated, whether they are flexible.
2. Power on the hose pump drive to check whether the motor is running normally. After normal operation, test whether the inlet and outlet pressures of the hose pump meet the requirements.
3. Set the lift and flow of the hose pump to ensure that it operates within the optimal range in order to obtain an efficient operating state.
4. During the operation of the hose pump, the maximum temperature of the bearing shall not exceed 80 ℃, and ensure that the temperature of the peristaltic bearing shall not exceed 35 ℃ higher than the ambient temperature.
5. During the working process of the hose pump, if abnormal noise is found in the hose pump, the hose pump should be turned off immediately for inspection.
6. Daily maintenance should be timely. After a new pump is used for one month, the lubricating oil should be replaced every 100 hours. The hose pump should be replaced every 100 hours within the first month of operation, and every 500 hours thereafter.
7. Regularly check the upper pressure block of the pump head. If the upper pressure block is found to be rough and uneven, the upper pressure block of the pump head should be replaced immediately to prevent the hose from being subjected to large wear and thus reducing the service life of the hose.
8. If the hose pump is not used for a long time, the pump head of the hose pump needs to be disassembled, other liquids in the pump body should be wiped dry, and the lubricating oil of the connection between the pump head and the drive, the motor bearing and other related connection parts should be fully filled, and then Store at room temperature for safe storage.
|model||rated output m3/h||rated pressure MPa||rated power kw||max.aggregate size mm||max.suction dist. m|
It has more than 50 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Bauma Shanghai 2018
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
Contact Person: lisa Zhao
