KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

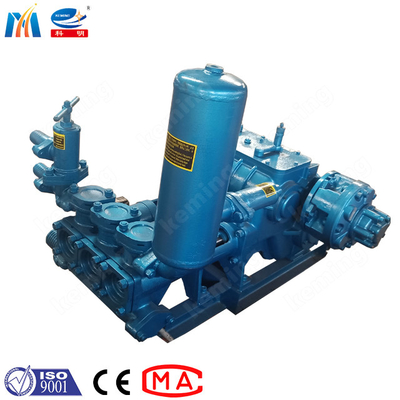

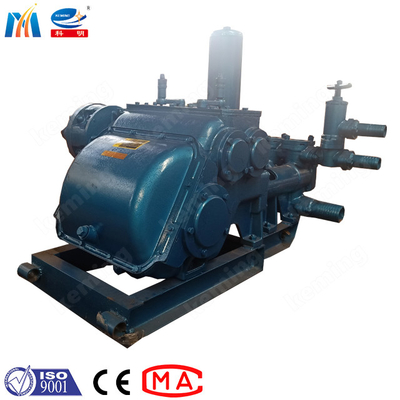

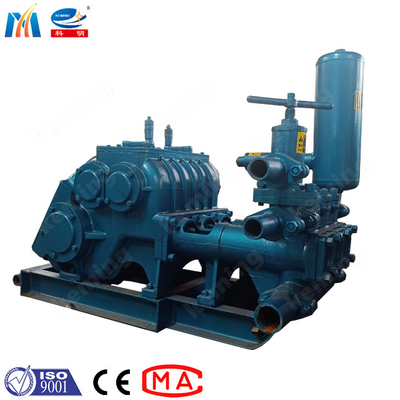

KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping

KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping
KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping

Large Image :  KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping

Product Details:
Place of Origin: China(mainland)
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KBW 250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-2000USD
Packaging Details: wooden box
Delivery Time: 5-6 weeks
Payment Terms: T/T, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Weight: Vary With The Model Condition: New
Power Type: Hydraulic Motor Dimension(l*w*h): Vary With The Model
Warranty: 1 Year After-sales Service Provided: Instruction Book, Online Support
Certification: CE, ISO, MA Color: Yellow, Customized
High Light:

Hydraulic Cement Injection Pump

,

Motor Driven Mud Pumping

,

Cement Injection Pump

Hydraulic Motor Driven Mud Pumping Machine Cement Injection Pump For Grouting



Introduction:

The injection pump is one of the main geological exploration equipment, the main role is to supply the borehole flushing fluid in the core drilling process (mud or water), the circulation in the borehole, in order to carry cuttings back to the ground, the bottom of the hole to keep clean, and the cooling and lubrication drill and drill hole wall protection, prevent collapse and help, etc. therefore drilling liquid drilling commonly known as the "blood", indicating a significant effect, so the injection pump performance directly affects the drilling efficiency.



 Features:
1. KBW series mud pump is horizontal triplex grout pump with high stability and high pressure.
2. Eight gear shift to adjust the flow, large output capacity, simple operation.
3. High quality pump parts, less wearing parts, long service life, low construction cost.
4 .Fast suction-discharge speed, high pump efficiency.
5. Less noise and dust, environmental operation.


Specification:



Type



KBW-250



Model

Horizontal three cylinder reciprocating single acting piston pump
Stroke (mm) 100

(mm)

Cylinder diameter

80 65 70

(/min)

Number of strokes

200 116 72 42 200 116 72 42 209 171 130 107
Flow (l/min) 2 50 145 90 52 166 96 60 35 200 164 125 102
(kg/cm2 )Pressure 25 45 60 60 40 60 70 70 50 60 70 80
(% ) volumetric efficiency 83
(%)gross efficiency 70
(kw)Necessary power 15 22

(mm)

Pulley pitch diameter

(B type*5 slot)410
(r/min)input speed 500 520
(m)suction height 2.5

(mm)

Water inlet caliber

(with 3 high pressure hose clip cloth) 76
(mm)Drain diameter



(with 2 time two ply steel hose) 51

(mm)

(length * width * height)



1000*995*650

weight(Kg) 500 520

Related machines:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Shotcrete machine:
KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 0
Shotcrete pump:
KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 1
Certification:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 2KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 3KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 4
Why choose us:
KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 5
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and
Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 6KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 7KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 8
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 9KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 10
Exhibition:
Bauma Shanghai 2018
KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 11KBW 250 Cement Injection Pump For Grouting Hydraulic Motor Driven Mud Pumping 12
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.

4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
If you have any other questions about our machines and price, pls feel free to contact us !
