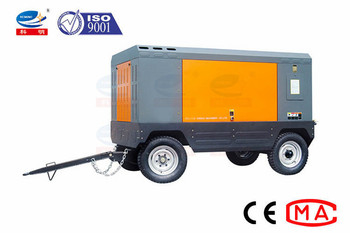

| Product: | 90SDY-8 Four Wheels Air Compressor | Motor Power: | 55, 75, 90, 110, 132, 74, 118, 140, 158, 194kw |
|---|---|---|---|
| Weight: | 1800-3700kg | After Warranty Service: | Online Video Support |
| High Light: | Air Compressor For Plastering Machine,KEMING Air Compressor,3700kg Air Compressor |
||
1. High quality heavy duty filtratiuon system with safty filters.
2. Computerized automatic control and protection system.
3. Heavy duty SKF bearings, advanced single stage, or dual stage made for oil injected air end.
4. Energy saving full series,class 2 energy efficiency, extra large air displacement, more cost saving.
Air Compressor Application:
1. High quality heavy duty filtratiuon system with safty filters.
2. Computerized automatic control and protection system.
3. Heavy duty SKF bearings, advanced single stage, or dual stage made for oil injected air end.
4. Energy saving full series,class 2 energy efficiency, extra large air displacement, more cost saving.
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 55SCYY-8 two wheels | 0.8 | 8 | 55(75) | 1800 |
| 75SDY-8 four wheels | 0.8 | 13.6 | 75(100) | 1960 |
| 75SDY-10 four wheels | 1.0 | 10 | 75(100) | 1850 |
| 75SDY-14.5 two wheels | 1.45 | 10 | 75(100) | 2000 |
| 90SDY-8 four wheels | 0.8 | 16 | 90(120) | 2300 |
| 90SDY-14.5 two wheels | 1.45 | 13 | 90(120) | 2200 |
| 90SCY-13 four wheels | 1.3 | 16 | 90(120) | 2500 |
| 110SDY-8 four wheels | 0.8 | 20 | 110(150) | 2600 |
| 110SDY-17 four wheels | 1.7 | 15 | 110(150) | 3000 |
| 132SDY-8 four wheels | 0.8 | 24 | 132(180) | 2750 |
| 132SDY-13 four wheels | 1.3 | 17 | 132(180) | 2700 |
| 132SDY-17 four wheels | 1.7 | 15 | 132(180) | 2700 |
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 100SCY-8 two wheels | 0.8 | 8 | 74(100) | 2000 |
| 160SCY-8 four wheels | 0.8 | 13.6 | 118(160) | 2300 |
| 160SCY-10 four wheels | 1.0 | 12 | 118(160) | 2300 |
| 160SCY-14.5 two wheels | 1.45 | 11 | 118(160) | 2200 |
| 190SCY-15 four wheels | 1.5 | 15 | 140(190) | 2500 |
| 190SCY-15 two wheels | 1.5 | 15 | 140(190) | 2400 |
| 190SCY-13 four wheels | 1.3 | 16 | 140(190) | 2900 |
| 215SCY-8 four wheels | 0.8 | 17 | 158(215) | 2600 |
| 215SCY-8 four wheels | 0.8 | 21 | 158(215) | 3300 |
| 220SCY-17 four wheels | 1.7 | 15 | 162(220) | 3300 |
| 260SCY-18 four wheels | 1.8 | 17 | 191(260) | 3700 |
| 265SCY-8 four wheels | 0.8 | 24 | 194(265) | 3700 |
1. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the stator & rotor, spraying nozzle may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many square meters you will spray.
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
4. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
5. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
6. Q :How should I pay for this order?
A: Generally, TT, 30% deposit 70% before shipment; 100% TT in advance (especially for small amount and spare parts etc.)
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
