Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Home ProductsDry Mix Shotcrete Machine

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

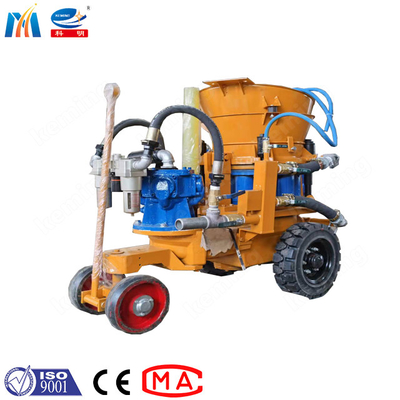

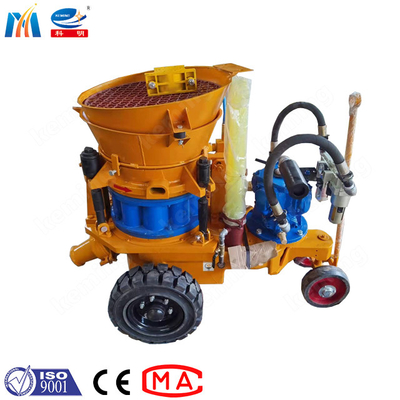

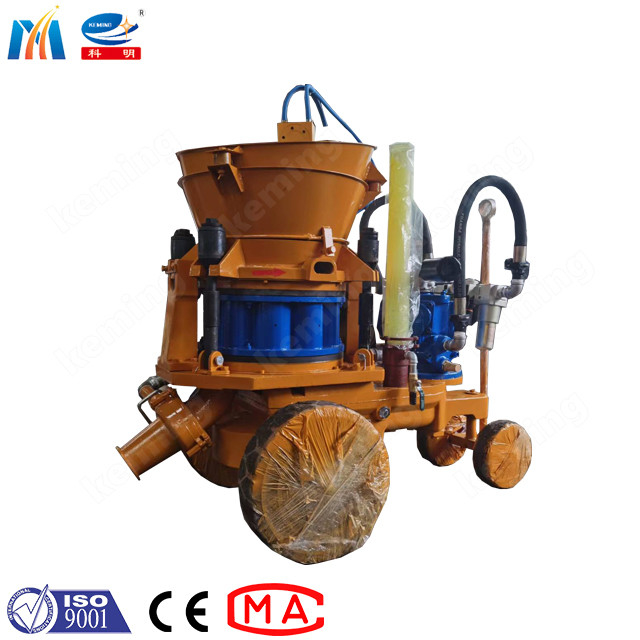

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts
KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts
video play

Large Image :  KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts

Product Details:
Place of Origin: Zhengzhou, China
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KPZ -5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1500-2300 per set
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Keywords: Pneumatic Shotcrete Machine Application: Mining Engineering
Color: Customized Certification: CE, ISO, MA
After-sales Service Provided: Online Support Condition: New
Dimension(l*w*h): Vary With The Model Voltage: 380v,400v, Customized
Warranty: 1 Year
High Light:

Pneumatic Driven Shotcrete Machine

,

0.6 MPa Shotcrete Machine

,

Dry Pumpcrete Shotcrete Machine

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine 5.5 M3 / H Dry Pumpcrete With Spare Parts



Application:

1. Collection and exhaust device of leaked air of hopper, rotor liner plates, reducing the dust leakage.
2. New dust removal technology and filter material, with good filtering effect and long service life.
3. Drawer-type dust container, convenient to clean.
4. Spraying nozzle system with multiple circular water adding device, ensuring even mixing.
5. Accelerator added by vibration, ensuring micro adjustment and proper adding ratio.

6. we provide some spare parts for the general usual maintinance, and online support with our engineer to slove the break down problem as soon as possible.



Features:


1. No need use power, directly use compressed air as the power source, which greatly saves the preparation time for spraying;

2. The air intake system adopts a quick connection device, which is more convenient to operate;

3. The inlet and outlet of the material have been enlarged and improved, so that the continuity of the concrete material is more guaranteed;

4. Small size, reasonable structure and easy to move.



Specification:



Model KPZ-3A KPZ-4A KPZ-5A KPZ-7A KPZ-9A
Output 2~3 m3/h 3.5~4.5 m3/h 4.5~5.5 m3/h 5.5~6.5 m3/h 6.5~7.5 m3/h
Max.conveying dist. 250 m 230 m 200 m 150 m 100 m
Max.aggregate size 15 mm 18 mm 20 mm 20 mm 20 mm
Hose inner diameter φ42/51 mm φ51 mm φ51 mm Φ57 mm/φ51 mm Φ57 mm/φ64mm
Air consumption 5 m3/min 8 m3/min 8 m3/min 9 m3/min 9 m3/min
Motor power 6 m3/min 8 m3/min 8 m3/min 9 m3/min 9 m3/min
Rated working pressure 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa



Company information:

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 0

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products.

Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 1KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 2KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 3

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 4KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 5

Related machines:

Our main machines are : Shotcrete equipment, grouting equipment, mixing equipment, plastering equipment, hose pump etc.

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 6KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 7KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 8

Certification:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 9KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 10KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 11

Exhibition:

Bauma Shanghai 2018

KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 12KPZ 0.6 MPa Pneumatic Driven Shotcrete Machine Dry Pumpcrete With Spare Parts 13

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.


If you have any other questions, pls feel free to contact us , will choose the most suitable machines for you !
