Product Details:
Payment & Shipping Terms:
|

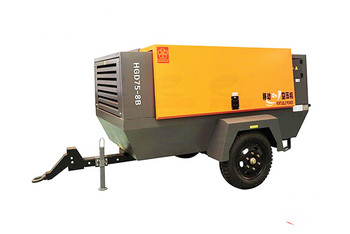

| Product: | KEMING Air Compressor | Air Compressor Nominal Pressure: | 0.8, 1.0, 1.45, 1.3, 1.7, 1.8Mpa |
|---|---|---|---|
| Air Delivery: | 8, 13.6, 10, 16, 13, 20, 15, 17, 24m3/min | After Warranty Service: | Online Video Technical Support |
| High Light: | Heavy duty SKF bearings Air Compressor,1.8Mpa Air Compressor,Air Compressor With Shotcrete Machine |
||
1. Heavy duty SKF bearings, advanced single or dual stage made for oil injected air end.
2. Energy saving full series, high energy efficiency, large air displacement, Low cost.
3. High quality, heavy duty filtratiuon system with safty filters.
Air Compressor Application:
1. Heavy duty SKF bearings, advanced single or dual stage made for oil injected air end.
2. Energy saving full series, high energy efficiency, large air displacement, Low cost.
3. High quality, heavy duty filtratiuon system with safty filters.
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 55SCYY-8 two wheels | 0.8 | 8 | 55(75) | 1800 |
| 75SDY-8 four wheels | 0.8 | 13.6 | 75(100) | 1960 |
| 75SDY-10 four wheels | 1.0 | 10 | 75(100) | 1850 |
| 75SDY-14.5 two wheels | 1.45 | 10 | 75(100) | 2000 |
| 90SDY-8 four wheels | 0.8 | 16 | 90(120) | 2300 |
| 90SDY-14.5 two wheels | 1.45 | 13 | 90(120) | 2200 |
| 90SCY-13 four wheels | 1.3 | 16 | 90(120) | 2500 |
| 110SDY-8 four wheels | 0.8 | 20 | 110(150) | 2600 |
| 110SDY-17 four wheels | 1.7 | 15 | 110(150) | 3000 |
| 132SDY-8 four wheels | 0.8 | 24 | 132(180) | 2750 |
| 132SDY-13 four wheels | 1.3 | 17 | 132(180) | 2700 |
| 132SDY-17 four wheels | 1.7 | 15 | 132(180) | 2700 |
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 100SCY-8 two wheels | 0.8 | 8 | 74(100) | 2000 |
| 160SCY-8 four wheels | 0.8 | 13.6 | 118(160) | 2300 |
| 160SCY-10 four wheels | 1.0 | 12 | 118(160) | 2300 |
| 160SCY-14.5 two wheels | 1.45 | 11 | 118(160) | 2200 |
| 190SCY-15 four wheels | 1.5 | 15 | 140(190) | 2500 |
| 190SCY-15 two wheels | 1.5 | 15 | 140(190) | 2400 |
| 190SCY-13 four wheels | 1.3 | 16 | 140(190) | 2900 |
| 215SCY-8 four wheels | 0.8 | 17 | 158(215) | 2600 |
| 215SCY-8 four wheels | 0.8 | 21 | 158(215) | 3300 |
| 220SCY-17 four wheels | 1.7 | 15 | 162(220) | 3300 |
| 260SCY-18 four wheels | 1.8 | 17 | 191(260) | 3700 |
| 265SCY-8 four wheels | 0.8 | 24 | 194(265) | 3700 |
1. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
4. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
6. Q :How should I pay for this order?
A: Generally, TT, 30% deposit 70% before shipment
As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
