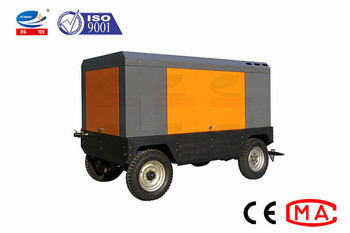

| Product: | Air Compressor | Nominal Pressure: | 0.8-1.8Mpa |
|---|---|---|---|
| Free Air Delivery: | 8-24m3/min | After Warranty Service: | Video Technical Support |
| High Light: | single stage Shotcrete Air Compressor,0.8Mpa Air Compressor,Skf Bearing Air Compressor |
||
1. Heavy duty SKF bearings, advanced single stage, or dual stage made for oil injected air end.
2. Energy saving full series,class 2 energy efficiency, extra large air displacement, more cost saving.
3. Computerized automatic control and protection system.
4. High quality heavy duty filtratiuon system with safty filters.
Air Compressor Application:
1. Heavy duty SKF bearings, advanced single stage, or dual stage made for oil injected air end.
2. Energy saving full series,class 2 energy efficiency, extra large air displacement, more cost saving.
3. Computerized automatic control and protection system.
4. High quality heavy duty filtratiuon system with safty filters.
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 55SCYY-8 two wheels | 0.8 | 8 | 55(75) | 1800 |
| 75SDY-8 four wheels | 0.8 | 13.6 | 75(100) | 1960 |
| 75SDY-10 four wheels | 1.0 | 10 | 75(100) | 1850 |
| 75SDY-14.5 two wheels | 1.45 | 10 | 75(100) | 2000 |
| 90SDY-8 four wheels | 0.8 | 16 | 90(120) | 2300 |
| 90SDY-14.5 two wheels | 1.45 | 13 | 90(120) | 2200 |
| 90SCY-13 four wheels | 1.3 | 16 | 90(120) | 2500 |
| 110SDY-8 four wheels | 0.8 | 20 | 110(150) | 2600 |
| 110SDY-17 four wheels | 1.7 | 15 | 110(150) | 3000 |
| 132SDY-8 four wheels | 0.8 | 24 | 132(180) | 2750 |
| 132SDY-13 four wheels | 1.3 | 17 | 132(180) | 2700 |
| 132SDY-17 four wheels | 1.7 | 15 | 132(180) | 2700 |
| Model | Nominal pressure (Mpa) | Free air delivery (m3/min) | Motor power kw(hp) | Weight(kg) |
| 100SCY-8 two wheels | 0.8 | 8 | 74(100) | 2000 |
| 160SCY-8 four wheels | 0.8 | 13.6 | 118(160) | 2300 |
| 160SCY-10 four wheels | 1.0 | 12 | 118(160) | 2300 |
| 160SCY-14.5 two wheels | 1.45 | 11 | 118(160) | 2200 |
| 190SCY-15 four wheels | 1.5 | 15 | 140(190) | 2500 |
| 190SCY-15 two wheels | 1.5 | 15 | 140(190) | 2400 |
| 190SCY-13 four wheels | 1.3 | 16 | 140(190) | 2900 |
| 215SCY-8 four wheels | 0.8 | 17 | 158(215) | 2600 |
| 215SCY-8 four wheels | 0.8 | 21 | 158(215) | 3300 |
| 220SCY-17 four wheels | 1.7 | 15 | 162(220) | 3300 |
| 260SCY-18 four wheels | 1.8 | 17 | 191(260) | 3700 |
| 265SCY-8 four wheels | 0.8 | 24 | 194(265) | 3700 |
1. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
2. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
3. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
4. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
6. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
7. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
