Product Details:
Payment & Shipping Terms:
|
| Product: | Concrete Mixer Pan Mixer | Model: | KJW250-3000 |
|---|---|---|---|
| Advantage: | Stable Performance | Feature: | Convenient Operation |
| High Light: | Stable Performance Concrete Pan Mixer,5.5kw Concrete Pan Mixer,single shaft concrete Pan mixer |
||

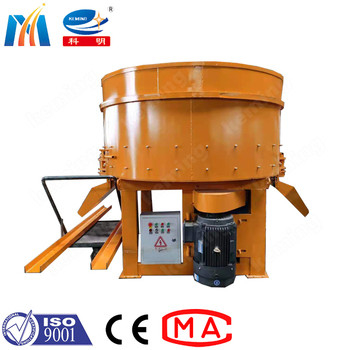

1. Concrete Mixer Pan Mixer is a single-shaft concrete mixer.
2. Concrete Mixer Pan Mixer has the advantages of stable performance, high mixing quality and efficiency.
3. Forward rotation stirs the material, which reverse rotation discharges the material.Concrete Mixer Pan Mixer can be equipped with the feeding and weighing equipment to form a medium-sized mixing station.
Concrete Mixer Pan Mixer Features:
1. Easy operation and maintenance.
2. Reasonable design, stable performance.
3. Low energy consumption, low noise.
Concrete Mixer Pan Mixer Application:
1. Concrete Mixer Pan Mixer can also be used in all kinds of size prefabricated component plants, brick making plants, or civil construction projects.
2. Concrete Mixer Pan Mixer can mix not only mortar and cement slurry, but also dry hard concrete, plastic and pasty concrete or lightweight aggregate concrete.
3. Concrete Mixer Pan Mixer is widely used in various construction sites, like roads, bridges, hydropower and other projects.
|
Model |
Unit |
KJW350 |
KJW500 |
KJW1000 |
|
Drum volume |
L |
350 |
500 |
1000 |
|
Capacity |
m3/h |
9~12 |
15~18 |
25~30 |
|
Max. aggregate. size |
mm |
30 |
30 |
40 |
|
Power |
kW |
5.5 |
7.5 |
13 |
|
Shaft rotational speed |
r/min |
21 |
40 |
21 |
|
Dimension (length×width×height) |
mm |
1200*1200*1400 |
1300*1300*1400 |
1800*1800*1400 |
