Product Details:
Payment & Shipping Terms:
|
| Product: | JZM Series Friction Concrete Mixer | Application: | Mixing Concrete Mortar |
|---|---|---|---|
| Drum Volume: | 560L-800L | After-sales Service Provided: | Online Support |
| High Light: | high automation degree Friction Concrete Mixer,JZM Series Friction Concrete Mixer,Friction Concrete Mixer 800L |
||

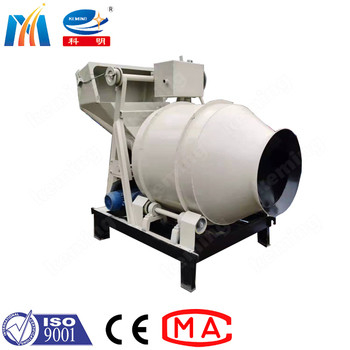

1. JZM Series Friction Concrete Mixer is also called friction mixer.
2. It is a concrete mixer model driven by rubber roller friction.
3. Each mixing cycle is about 100 seconds, which can mix plastic and semi-dry hard concrete.
4. It is a forward-rotation mixing and reverse-discharge type concrete mixer.
5. This mixer is a drum type concrete mixer with positive rotation mixing and reverse discharge type.
JZM Series Friction Concrete Mixer Features:
1. Low noise and stable operation.
2. Convenient operation and movement, high mixing quality, and can mix plastic and semi-dry concrete.
JZM Series Friction Concrete Mixer Application:
1. It is mainly used to mix plastic concrete and half-dry concrete.
2. It can be matched with the batching device to form a small and medium mixing station, suitable for general construction sites, roads, bridges, hydropower and other projects are suitable for construction in urban residential areas.
|
Model |
JZM350 |
JZM400 |
JZM450 |
JZM500 |
|
Charging volume (L) |
350 | 400 | 450 | 500 |
|
Discharging capacity (L) |
560 | 640 | 720 | 800 |
|
Productivity (m3/h) |
10-13 | 12-18 | 14-19 | 16-20 |
|
Rev of drum (r/min) |
15 | 15 | 15 | 15 |
|
Max. Aggregate size (mm) |
60 | 60 | 60 | 60 |
|
Water-supply error |
≤2% | ≤2% | ≤2% | ≤2% |
|
Stirring motor(kW) |
5.5 | 5.5 | 7.5 | 5.5*2 |
|
Hoisting motor(kW) |
4.5 | 4.5 | 4.5 | 4.5 |
|
Water pump motor(kw) |
0.55 | 0.75 | 0.75 | 1.1 |
|
Tires |
650-16 | 650-16 | 700-16 | 700-16 |
|
Towing speed(km/h) |
≤20 | ≤20 | ≤20 | ≤20 |
|
Dimension(L*W*H)(m) |
3.8*2.05*2.69 | 3.8*2.2*2.85 | 4*2.3*2.9 | 5.7*2.35*5.1 |
|
Machine Weight (kg) |
1950 | 2100 | 2400 | 2800 |
