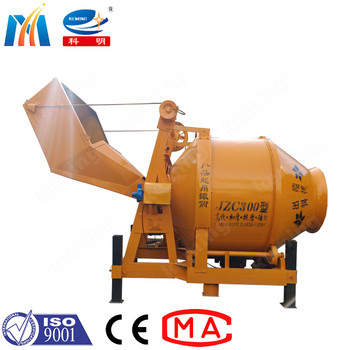

| Product: | JZC300 KEMING JZC Series Concrete Mixer | Power Type: | Electric Motor /diesel Engine |
|---|---|---|---|
| Applicable Materials: | Mortar, Concrete | After-sales Service Provided: | Video Technical Support |
| High Light: | Double cone mixing machine,1200L Concrete Mixer Machine,diesel engine Concrete Mixer |
||
1. The mixing drum of JZC concrete mixer rotates forward for mixing and reverses for discharge.
2. Concrete Mixer belongs to the self-falling double cone reversal discharge mobile concrete mixer, which can mix plastic and semi-dry concrete.
Concrete Mixer Features:
1. Concrete Mixer is suitable for general construction sites, roads, bridge projects and concrete component factories.
2. During fixed mixing, a pit can be dug to make the hopper mouth flush with the ground and convenient for feeding.
Concrete Mixer Application:
1. The series of mixers includes five main models: JZC300, 350,400, 500, and 750.
2. In addition to being used as a single unit, it can be combined with a batching unit to synthesize a simple mixing station.
| Model | JZC300 | JZC350 | JZC400 | JZC500 | JZC750 |
| Charging volume (L) | 480 | 560 | 640 | 800 | 1200 |
| Discharging capacity (L) | 300 | 350 | 400 | 500 | 750 |
| Productivity (m3/h) | 8-12 | 10-14 | 12-16 | 18-20 | 25-30 |
| Rev of drum (r/min) | 17 | 14 | 14 | 13 | 12 |
| Max. size of aggregate (mm) | 60 | 60 | 60 | 80 | 80 |
| Water-supply error | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Discharge height(mm) | 1250 | 1250 | 1250 | 1500 | 1800 |
| Stirring motor(kW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Lifting motor(kW) | / | /4.5 | 4.5 | 5.5 | 7.5 |
| Water pump motor (kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 |
| Tire size | 6.00-16 | 6.00-16 | 6.00-16 | 7.50-16 | |
| Towing speed(km/h) | 20 | 20 | 20 | 20 | |
|
Outline dimension L*B*H(m) |
2.3*2*2.8 | 2.8*2.2*2.8 | 3*2.3*2.9 | 3.3*2.5*3.7 | 3.8*2.1*3.8 |
| Machine Weight (kg) | 1300 | 1400 | 1400 | 1800 | 2500 |
