Product Details:
Payment & Shipping Terms:
|
| Product: | KEMING JZC Concrete Mixer | Application: | Mixing Plastic And Semi-dry Concrete |
|---|---|---|---|
| Drum Volume: | 480L-1200L | After-sales Service Provided: | Video Technical Support |
| High Light: | mixing plastic Grout Mixer Machine,480L Concrete Mixer Machine,semi dry concrete Mixer |
||

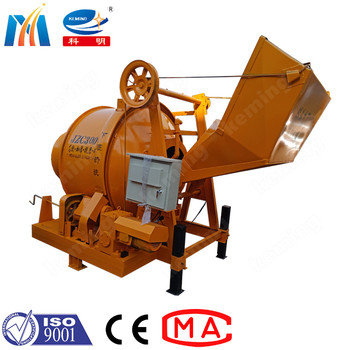

1. JZC concrete mixer can mix plastic and semi-dry concrete.
2. The mixing drum of JZC concrete mixer rotates forward for mixing and reverses for discharging.
3. Tank can mix 300 to 750 L of concrete (referring to the volume of concrete after tamping), and can produce 8 to 75 m3/h.
4. It belongs to the self-falling double cone reversal discharge mobile concrete mixer
KEMING JZC Concrete Mixer Features:
1.JZC concrete mixer is suitable for general construction sites, roads, bridge peojects and small and medium-site concrete factories.
2. During fixed mixing, a pit can be dug to make the hopper mouth flush with the ground and convenient for feeding.
KEMING JZC Concrete Mixer Application:
1. The series of mixers includes fove main models: JZC300, 350,400, 500, and 750.
2. In addition to being used as a single unit, it can be combined with a batching unit to synthesize a simple mixing station.
| Model | JZC300 | JZC350 | JZC400 | JZC500 | JZC750 |
| Charging volume (L) | 480 | 560 | 640 | 800 | 1200 |
| Discharging capacity (L) | 300 | 350 | 400 | 500 | 750 |
| Productivity (m3/h) | 8-12 | 10-14 | 12-16 | 18-20 | 25-30 |
| Rev of drum (r/min) | 17 | 14 | 14 | 13 | 12 |
| Max. size of aggregate (mm) | 60 | 60 | 60 | 80 | 80 |
| Water-supply error | ≤2% | ≤2% | ≤2% | ≤2% | ≤2% |
| Discharge height(mm) | 1250 | 1250 | 1250 | 1500 | 1800 |
| Stirring motor(kW) | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Lifting motor(kW) | / | /4.5 | 4.5 | 5.5 | 7.5 |
| Water pump motor (kw) | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 |
| Tire size | 6.00-16 | 6.00-16 | 6.00-16 | 7.50-16 | |
| Towing speed(km/h) | 20 | 20 | 20 | 20 | |
|
Outline dimension L*B*H(m) |
2.3*2*2.8 | 2.8*2.2*2.8 | 3*2.3*2.9 | 3.3*2.5*3.7 | 3.8*2.1*3.8 |
| Machine Weight (kg) | 1300 | 1400 | 1400 | 1800 | 2500 |
