Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

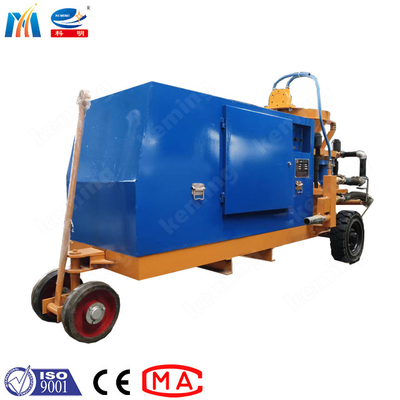

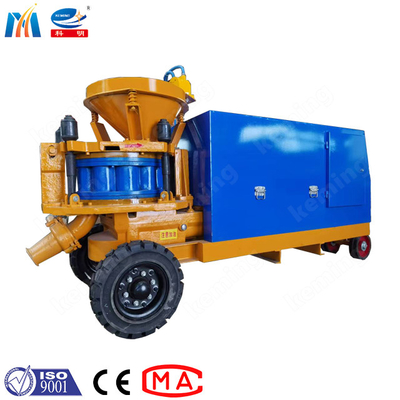

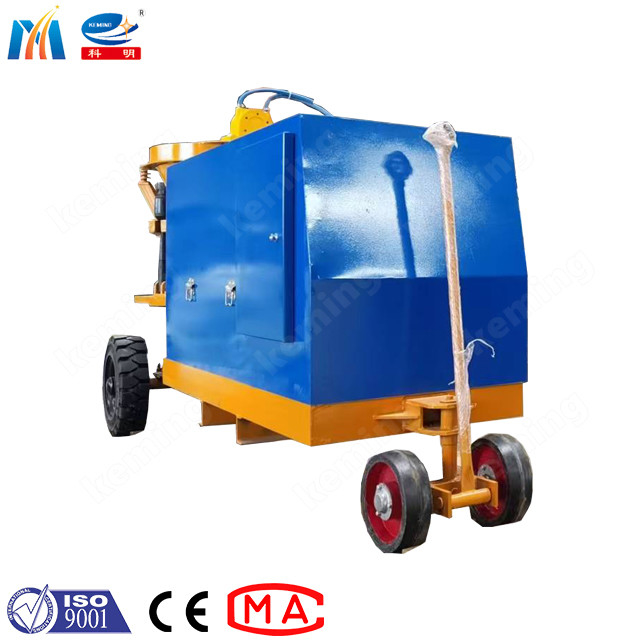

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model
Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model

Large Image :  Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model

Product Details:
Place of Origin: Zhengzhou
Brand Name: KeMing
Certification: CE, MA, ISO
Model Number: KSP series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1000-3000USD
Packaging Details: wooden box
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 20 sets per month
Detailed Product Description
Air Consumption: 8-10m3/h Condition: New
Power Engine: Electric Or Diesel Driven After Sale Service: Online Support
Color: Customized Features: High Efficiency
Dimension(l*w*h): Vary With The Model Keywords: Shotcrete Machine
Warranty: 12 Month Application: Hydroseeder
High Light:

Low Air Consumption Concrete Shotcrete Machine

,

KSP Model Concrete Shotcrete Machine

,

Engine Concrete Shotcrete Machine

Low Air Consumption KSP Model Diesel Engine Concrete Shotcrete Machine In Engineering Construction

Application:

The shotcrete machine is a shotcrete support machine with good comprehensive performance such as reducing dust, reducing bounce, and saving materials at home and abroad.

Concrete shotcrete machine is a kind of construction equipment widely used in engineering construction.

It uses compressed air or other power to transport the mixing material in a certain proportion through the pipeline and spray it at a high speed to the sprayed surface to set and harden, thereby forming concrete. Support layer, shotcrete technology is simple, low construction cost, wide application, small operation dust, small spray rebound, protect the working environment, save raw materials, improve the quality of spray layer, etc.

It has played an important role in various construction fields.



Wet shotcrete machine is currently the anchor and shotcrete supporting machine with good comprehensive performance at home and abroad, such as reducing dust, reducing rebound and saving materials.

The basic principle of the so-called wet spraying is that the finished concrete mixed with water is added to the wet spraying machine, transported to the nozzle, mixed with accelerating coagulant, and sprayed to the construction surface.

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 0

Features:

1. KSP-7 wet shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.

2. Concrete mixture gets well mixed, water and cement ratio is accurately controlled.

3. KSP-7 wet shotcrete machine has quicker cement hydration, fewer dusts, lower rebound rate, good mixing uniformity and high concrete strength.

4. KSP-7 wet shotcrete machine has reasonable structure, stable performance, convenient operation and maintenance, long service life.

Specification:

model driven mode capacity motor/air consumption of air motor air consumption
KSP-5 diesel driven 3-4 m3/h 13 kw 8m3/min
KSP-5 electrical driven 3-4 m3/h 5.5 kw 8m3/min
KSP-7 diesel driven 5-6 m3/h 16.2 kw 9m3/min
KSP-7 electrical driven 5-6 m3/h 7.5 kw 9m3/min
KSP-9 diesel driven 7-8 m3/h 16.2 kw 10m3/min
KSP-9 electrical driven 7-8 m3/h 7.5 kw 10m3/min

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 1

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 2

Company information:

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 3

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.



Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.



Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.



Related machines:

Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 4Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 5Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 6



Workshop & Delivery:

Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 7Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 8

Certification:

In March 1979, our company was established in Zhengzhou, Henan.
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.



Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 9Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 10Diesel Engine Concrete Shotcrete Machine Low Air Consumption KSP Model 11

FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
