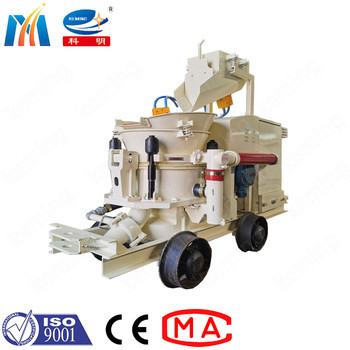

KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure

KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure
KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure
video play

Large Image :  KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: PS6I-J dedusting shotcrete gunite machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: PS6I-J Dedusting Shotcrete Gunite Machine Capacity: 4/6m3/h
Dust Around The Machine: ≤10mg/m3 Spraying Hose Id.: 51mm
After-sales Service Provided: Video Technical Support
High Light:

KEMING Dedusting Shotcrete Machine

,

Shotcrete Gunite Machine

,

Shotcrete Gunite Machine 51mm

More than 90% dedust rate KEMING dedusting shotcrete gunite machine with sample structure

PS6I-J dedusting shotcrete gunite machine Introduction:

1. KEMING Dedusting shotcrete gunite Machine can be applied in spraying dry, damp and wet mixture.

2. It is a new environment-friendly shotcrete machine, the polution is less than 90% of dust polution of traditional machine.

3. It obtains two patents, which is the Invention Patent and Utility Model Patent. Its new nozzle device, even concrete mix, low rebound rate.

PS6I-J dedusting shotcrete gunite machine Features:

1. Compact machine structure, simple operation, suitable for concrete operation in narrow space.

2. Can be used for dry, half wet or wet concrete spray construction.

PS6I-J dedusting shotcrete gunite machine Technical Parameters:

Items PS4I-J PS6I-J
Capacity 4-5m3/h 5-6m3/h
Delivery distance 200m/40m(horizontal/vertical) 100m/30m(horizontal/vertical)
Max. aggregate size ≤18mm ≤20mm
Delivery pipe ID.

φ51mm

φ51mm/φ57mm
Air consumption ≥7m3/min ≥8m3/min
Dust concentration ≤15mg/m3 ≤15mg/m3
Main motor power 5.5kW 7.5kW
Auxiliary motor power 1.1kW 1.1kW
Capacity of accelerator adding hopper 25kg 25kg



KEMING Dedusting Shotcrete Gunite Machine 51mm With Sample Structure 0
