KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator

KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator
KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator
video play

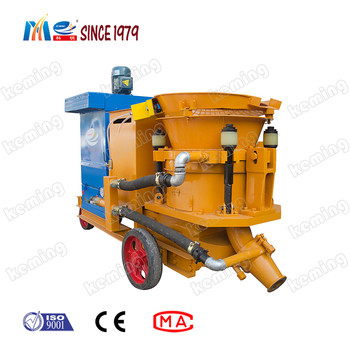

Large Image :  KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: PS4I-J KEMING KCPZ Dedusting Gunite Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: PS4I-J KEMING KCPZ Dedusting Gunite Machine Dedust Rate: More Than 90%
Max Aggregate Size: 20 Mm After-sales Service Provided: Video Technical Support
High Light:

KCPZ Dedusting Gunite Machine

,

20Mm Dedusting Gunite Machine

,

Dedusting Gunite Machine With Adding Accelerator

Great breakthrough KEMING KCPZ Dedusting Gunite Machine with adding accelerator

PS4I-J KEMING KCPZ Dedusting Gunite Machine Introduction:

1. PS4I-J KEMING KCPZ Dedusting Gunite Machine obtains the Invention Patent and Utility Model Patent.

2. PS4I-J KEMING KCPZ Dedusting Gunite Machine is a new environment-friendly shotcrete machine, the polution is less than 90% dust polution of traditional shotcrete machine.

3. PS4I-J KEMING KCPZ Dedusting Gunite Machine can be applied in spraying dry, damp and wet mixture.

PS4I-J KEMING KCPZ Dedusting Gunite Machine Features:

1. PS4I-J KEMING KCPZ Dedusting Gunite Machine is for dry, half wet or wet concrete spray construction.

2. PS4I-J KEMING KCPZ Dedusting Gunite Machine has simple operation, suitable for concrete operation in narrow space.

PS4I-J KEMING KCPZ Dedusting Gunite Machine Technical Parameters:

Items PS4I-J PS6I-J
Capacity 4-5m3/h 5-6m3/h
Delivery distance 200m/40m(horizontal/vertical) 100m/30m(horizontal/vertical)
Max. aggregate size ≤18mm ≤20mm
Delivery pipe ID.

φ51mm

φ51mm/φ57mm
Air consumption ≥7m3/min ≥8m3/min
Dust concentration ≤15mg/m3 ≤15mg/m3
Main motor power 5.5kW 7.5kW
Auxiliary motor power 1.1kW 1.1kW
Capacity of accelerator adding hopper 25kg 25kg



KEMING KCPZ Dedusting Gunite Machine 20 Mm With Adding Accelerator 0
