Product: | KSJ-300-750 KSJ Series Grouting Machine | Keyword: | 80-1800kg |
---|---|---|---|
Power: | 3-11kw | Certification: | CE, ISO |
High Light: | 11kw Grout Mixer machine,1800kg Grout Mixer,Double Deck Chambers Grouting Machine |

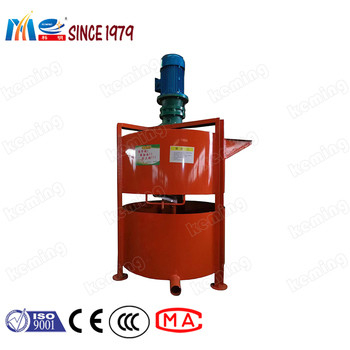

1. KSJ Series Grouting Machine is usually equipped with grouting pump and slurry pump.
2. It is to mix and store slurry, with the reasonable structure, high efficiency and simple operation.
3. The machine have double-deck chambers, including the upper chamber for slurry mixing and the lower chamber for slurry storage.
1. KSJ Series Grouting Machine is usually equipped with grouting pump and slurry pump to mix and store slurry.
2. KSJ Series Grouting Machine have double-deck chambers, including the upper chamber for slurry mixing and the lower chamber for slurry storage.
KSJ Series Grouting Machine Parameters:
Items | Parameters | ||||
Model | KSJ-200 | KSJ-350 | KSJ-500 | KSJ-300-580 | KSJ-300-750 |
Rated speed | 50r/min | 50r/min | 50r/min | 50r/min | 50r/min |
Agitator speed | 50r/min | 50r/min | 50r/min | 33r/min | 33r/min |
Mixing volume | 200L | 350L | 500L | 300L | 300L |
Storage volume | 200L | 350L | 500L | 580L | 750L |
Motor power | 2.2kw | 3kw | 3kw | 4/1.5kw | 4/1.5kw |
