Product: | KSJ-200 KEMING KSJ Series Grout Making Machine | Concrete Mixer Type: | Grout Making Mixer |
---|---|---|---|
Weight: | 500kg | After-sales Service Provided: | Video Technical Support |
Highlight: | Grouting Pump mixer Machine,500kg Grout mixer Machine,Grout Making Machine |

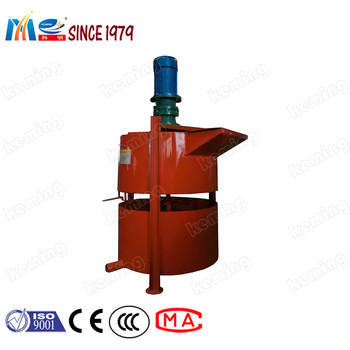

KEMING KSJ Series Grout Making Machine is usually equipped with grouting pump and slurry pump to mix and store slurry, with the reasonable structure, high efficiency and simple operation.
1. KEMING KSJ Series Grout Making Machine is usually equipped with grouting pump and slurry pump to mix and store slurry.
2. Reasonable structure, high efficiency and simple operation.
3. The machine have double-deck chambers, including the upper chamber for slurry mixing and the lower chamber for slurry storage.
KEMING KSJ Series Grout Making Machine Application:
1. It is mainly used to make cement grout.
2. It is used for tunnel excavation and maintenance, mining well engineering, dam construction, foundation treatment of big bridges and high building, and pressure grouting of all kinds of underground constructions.
KEMING KSJ Series Grout Making Machine Technical Parameters:
Items | Parameters | ||||
Model | KSJ-200 | KSJ-350 | KSJ-500 | KSJ-300-580 | KSJ-300-750 |
Rated speed | 50r/min | 50r/min | 50r/min | 50r/min | 50r/min |
Agitator speed | 50r/min | 50r/min | 50r/min | 33r/min | 33r/min |
Mixing volume | 200L | 350L | 500L | 300L | 300L |
Storage volume | 200L | 350L | 500L | 580L | 750L |
Motor power | 2.2kw | 3kw | 3kw | 4/1.5kw | 4/1.5kw |
