Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Reclaiming Capacity: | 35 M3/min |
|---|---|---|---|
| Motor Power: | 30 Kw | After-sales Service Provided: | Online Support, Operation Instruction |
| Warranty: | 1 Year | Color: | Customized |
| High Light: | Horizontal Concrete Forced Mixer,30Kw Concrete Mixer machine,Concrete Batching Mixer |
||

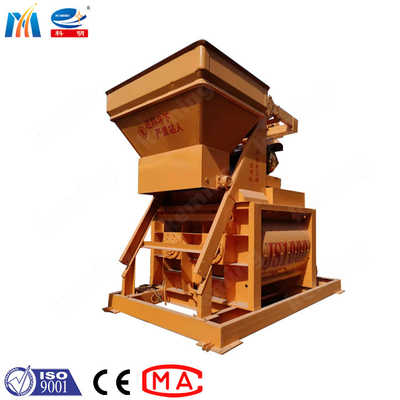

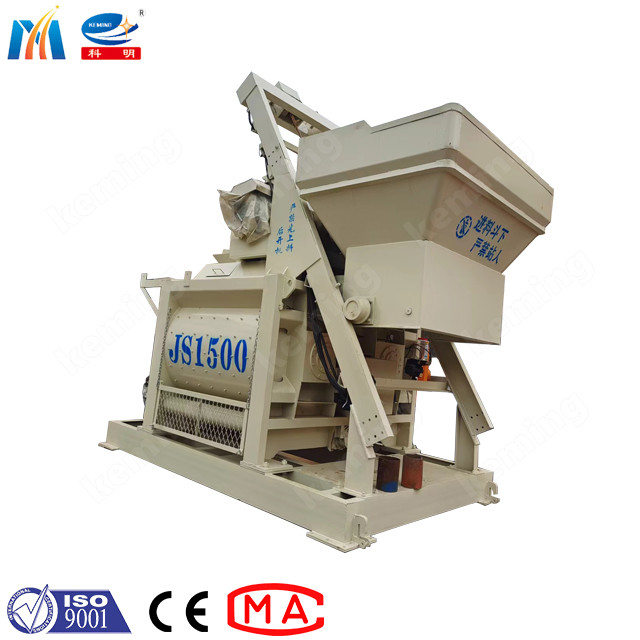

JS 1500 Concrete Mixer HZS 90 Concrete Batching Plant Concrete Mixer Machine With Four Silo
Introduction:
The JS forced mixer is a concrete mixer with high applicability.
It is a handicraft equipment developed and manufactured by people through several years of time and improvement, and integrating the application feedback of many customers.
The forced concrete mixer implements a strict quality inspection management system, and strictly controls the quality from the purchase of raw and auxiliary materials, electric welding, spraying, assembly and adjustment and other key links to ensure delivery to the user. The machinery and equipment have a very high quality and cost-effectiveness. In addition, JS mixers strictly manage the wear and tear of wear-resistant materials, such as jaws, mixing blades, hydraulic cylinders and other vulnerable parts have undergone rigorous screening and repeated experiments. , to ensure long-term operation in the hands of customers and reduce the cost of common failures and maintenance.
Specification :
| Model | JS 500 | JS 750 |
| Discharge volume | 500 L | 750L |
| feeding volume | 800L | 1200L |
| Capacity | ≤25m3/h | ≤35 m3/h |
| max aggregate size | ≤40-50mm | ≤40-50mm |
| mixing blade | 2x7 | 2x7 |
| mixing speed(r/min) | 31 | 31 |
| mixing motor power | 18.5 kw | 30 kw |
| lifting motor power | 5.5 kw | 7.5 kw |
| water pump motor power | 1.1 kw | 1.5 kw |
| dimension | 4461x3050x4180mm | 4951x3650x6225mm |
Certificate:
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
