30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant
30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant

Large Image :  30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant

Product Details:
Place of Origin: China(mainland)
Brand Name: keming
Certification: CE, ISO
Model Number: HZS 90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 50000-100000USD
Packaging Details: nude packing
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5set per month
Detailed Product Description
Condition: New Reclaiming Capacity: 35 M3/min
Motor Power: 30 Kw After-sales Service Provided: Online Support, Operation Instruction
Warranty: 1 Year Color: Customized
High Light:

HZS 90 Concrete Mixer

,

30kw Concrete Mixer

,

Concrete Mixer For Batching Plant

JS 1500 Concrete Mixer HZS 90 Concrete Batching Plant Concrete Mixer Machine With Four Silo



Introduction:

HZS 90 concrete batching plant is a simple concrete batching plant equipped with JS1500 type mixing host. The batching plant adopts advanced metering technology, with high mixing efficiency and fast metering speed. It can be widely used in highway bridges, small and medium-sized construction sites and prefabricated parts factory, etc.



Features:

1. Modular design, easy to disassemble

HZS 90 concrete batching plant adopts combined structure and unit modularization, which is very convenient for installation and relocation.

2. High quality stirring

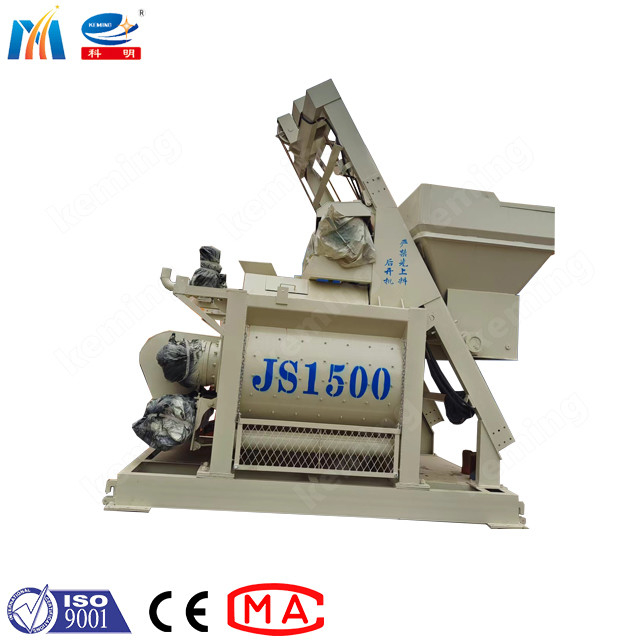

The host of HZS 90 concrete batching plant adopts JS1500 twin-shaft forced concrete mixer, which has good mixing quality and high efficiency.

3. Accurate measurement

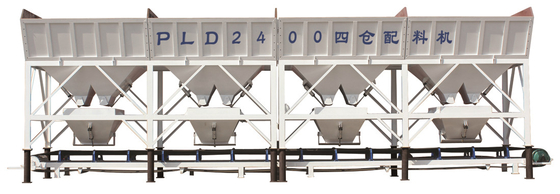

The aggregate batching adopts PLD2400 concrete batching machine, which has accurate measurement and high production efficiency. The powder and water are measured by electronic scales, and the batching accuracy is high.



Specification :

HZS-90 Concrete batching plant :



1. Feeding volume: 2400 L

2. Discharge volume: 1500 L

3. Discharge height: 4200mm

4. Mixing capacity : ≥75 m3/h

5. Mixer power: 30 kwx2

6. Hoist motor power: 18.5 kw

7. Water pump motor power: 3 kw(upper) 4 kw(lower)

8. Max. Aggregate size: ≤ 60/80mm

9. Rotation speed of the mixer: 25.5 r/min

10. Quantity of mixer blade:2x8

11. Aggregate weighing range: 0-300 kg

12. Cement weighing range: 0-900 kg

13. Water weighing range:0- 500 kg

14. Coal ash powder: 0-900 kg

15. Measuring scope &accuracy of aggregate: ±2%

16. Measuring scope &accuracy of water:±1%

17. Measuring scope &accuracy of cement:±1%

18. Measuring scope &accuracy of additive:±1%

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 0

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 130kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 230kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 3Certificate:

In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of
Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In October 2016, “KEMING” series products have been certified by CE Certification.



Company introduction:

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.

Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 4

Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

30kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 530kw Concrete Mixer HZS 90 Four Weighing For Batching Plant 6

Cooperate Culture:
Enterprise Spirit:
Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:

Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace



FAQ:

1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
