Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling

Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling
Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling
video play

Large Image :  Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KGP400/850/100 KEMING Grout Plant Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: KGP400/850/100 KEMING Grout Plant Machine Keyword: Grout Plant/grout Unit
Drive: Electric Or Diesel Motor After-sales Service: Online Support
Certification: CE, ISO
High Light:

Double Cylinders Mortar Grout Pump

,

Grout Pump Plant Machine

,

Grout Plant Machine For Cavity Filling

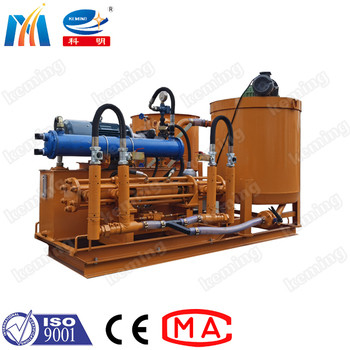

Double cylinders piston pump KEMING Grout Plant Machine for cavity filling application

KGP400/850/100 KEMING Grout Plant Machine Introduction:

KEMING Grout Plant Grout Unit has double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.

KGP400/850/100 KEMING Grout Plant Machine Features:

1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.

2. Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.

3. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.

KGP400/850/100 KEMING Grout Plant Machine Technical Parameters:

Model

KGP

200/500/50S

KGP

200/500/50

KGP

300/750/80

KGP

400/850/100

KGP

500/1000/200

Max output (L/min) 50(70) 50(60) 80(100) 100(120) 200(220)
Max pressure (Mpa) 4 7 16 7 9
Mixer volume (L) 200 200 300 400 500
Storage volume (L) 500 500 750 850 1000
Total power (kw) 12.5/18.5-E 18/22-E 29/37-E 31.7/37-E 29/37-E
37-D 48-D 55-D 55-D 55-D


KGP400/850/100 KEMING Grout Plant Machine Application:

1. Soil mixing

2. Compaction grouting

3. Pipe lubrication.

4. Jet drilling.

5. Grouting operations

6. Cavity filling.

7. Anchor-, rock-, bottom in injection.



Model

KGP

200/500/50S

KGP

200/500/50

KGP

300/750/80

KGP

400/850/100

KGP

500/1000/200

Max output (L/min) 50(70) 50(60) 80(100) 100(120) 200(220)
Max pressure (Mpa) 4 7 16 7 9
Mixer volume (L) 200 200 300 400 500
Storage volume (L) 500 500 750 850 1000
Total power (kw) 12.5/18.5-E 18/22-E 29/37-E 31.7/37-E 29/37-E
37-D 48-D 55-D 55-D 55-D



Double Cylinders Piston Mortar Grout Pump Plant Machine For Cavity Filling 0
