| Product: | KGP200/500/50S KEMING Grout Plant Grout Unit | Weight: | 1100-1200kg |
|---|---|---|---|
| Suction Hose ID: | 75mm | After-sales Service: | Online Support |
| High Light: | Easy To Operate Maintain Grout Pump,Mortar Grout Pump Pulping Machine,Grout Pump Plant Unit With Mixer |
||

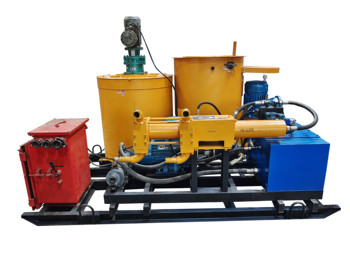

KEMING Grout Plant Grout Unit has double cylinders piston pump with single acting to ensure the continuous slurry flowing and not easily leaking compares with the double acting piston pump.
1. Up to 5mm particle size.
2. Air cooling and water cooling for the hydraulic.
3. Grouting pressure and displacement is adjustable.
4. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.
| Model |
KGP 200/500/50S |
KGP 200/500/50 |
KGP 300/750/80 |
KGP 400/850/100 |
KGP 500/1000/200 |
| Max output (L/min) | 50(70) | 50(60) | 80(100) | 100(120) | 200(220) |
| Max pressure (Mpa) | 4 | 7 | 16 | 7 | 9 |
| Mixer volume (L) | 200 | 200 | 300 | 400 | 500 |
| Storage volume (L) | 500 | 500 | 750 | 850 | 1000 |
| Total power (kw) | 12.5/18.5-E | 18/22-E | 29/37-E | 31.7/37-E | 29/37-E |
| 37-D | 48-D | 55-D | 55-D | 55-D |
KGP200/500/50S KEMING Grout Plant Grout Unit Application:
1. Anchor-, rock-, bottom in injection.
2. Grouting operations
3. Compaction grouting
4. Jet drilling.
