Product Details:
Payment & Shipping Terms:
|
| Product: | KEMING Grout Plant Grout Unit | Capacity: | 50-220L/min |
|---|---|---|---|
| Pressure: | 4-16Mpa | After-sales Service: | Online Support |
| High Light: | Mortar Grouting Pressure Pump,Adjustable Mortar Grout Pump,Grout Plant Unit For Jet Drilling |
||

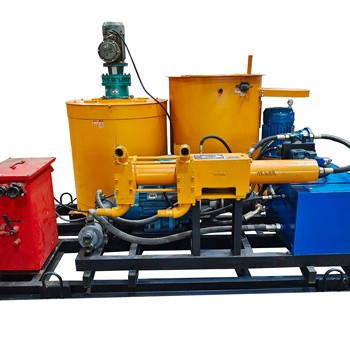

KEMING Grout Plant Grout Unit has double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.
1. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compares with the double acting piston pump.
2. Grouting pressure and displacement is adjustable.
3. The function switch between mixer and pulping machine is realized by using squeeze switch.
4. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
5. Full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
6. Easy to opoerate and maintain.
7. Up to 5mm particle size.
8. Air cooling and water cooling for the hydraulic.
| Model |
KGP 200/500/50S |
KGP 200/500/50 |
KGP 300/750/80 |
KGP 400/850/100 |
KGP 500/1000/200 |
| Max output (L/min) | 50(70) | 50(60) | 80(100) | 100(120) | 200(220) |
| Max pressure (Mpa) | 4 | 7 | 16 | 7 | 9 |
| Mixer volume (L) | 200 | 200 | 300 | 400 | 500 |
| Storage volume (L) | 500 | 500 | 750 | 850 | 1000 |
| Total power (kw) | 12.5/18.5-E | 18/22-E | 29/37-E | 31.7/37-E | 29/37-E |
| 37-D | 48-D | 55-D | 55-D | 55-D |
KEMING Grout Plant Grout Unit Application:
1. Anchor-, rock-, bottom in injection.
2. Cavity filling.
3. Pipe lubrication.
4. Jet drilling.
5. Grouting operations
6. Soil mixing
7. Compaction grouting
| Model |
KGP 200/500/50S |
KGP 200/500/50 |
KGP 300/750/80 |
KGP 400/850/100 |
KGP 500/1000/200 |
| Max output (L/min) | 50(70) | 50(60) | 80(100) | 100(120) | 200(220) |
| Max pressure (Mpa) | 4 | 7 | 16 | 7 | 9 |
| Mixer volume (L) | 200 | 200 | 300 | 400 | 500 |
| Storage volume (L) | 500 | 500 | 750 | 850 | 1000 |
| Total power (kw) | 12.5/18.5-E | 18/22-E | 29/37-E | 31.7/37-E | 29/37-E |
| 37-D | 48-D | 55-D | 55-D | 55-D |
